Product Information

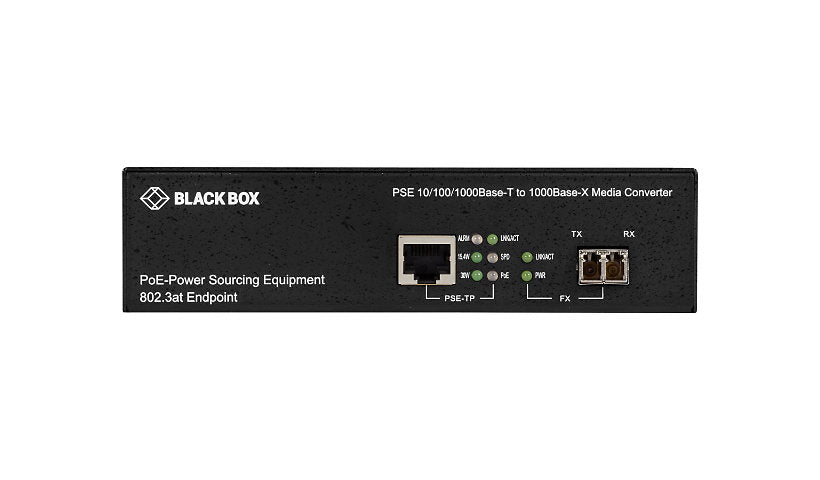

Bridge Gigabit fiber to a 10/100/1000 Mbps copper network and power 802.3af PoE gear on the copper side at the same time. This Black Box converter links copper to multimode fiber, an economical way to extend Ethernet well past the 100 meter (327 ft) copper limit.
It doubles as power sourcing equipment for PoE devices on the copper side, sending data and 48 VDC power over existing UTP. That makes it ideal for security cameras and wireless access points where outlets are inconvenient or costly to add. Power management includes overcurrent protection, undercurrent detection, minimum load sensing and per-port PSE power enable/disable. It is RoHS compliant.
Specifications:
Brand: Black Box
Manufacturer part number: LPS500A-MM-LC-R3
Product line: Black Box LPS500 Series
Cable type: Fiber media converter
Data rate: 1 GBps
Features: Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Flow control, Full duplex mode, Jumbo Frames support, Link Fault Pass Through function (LFP), Wall mountable
Height: 1.6 inch
Width: 6.2 inch
Weight: 21.16 ounce
Color: Black
Operating temperature: 32°F to 122°F
Quantity in package: 1
Standards and compliance: IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, EN 62368-1, FCC Part 15 A
