Product Information

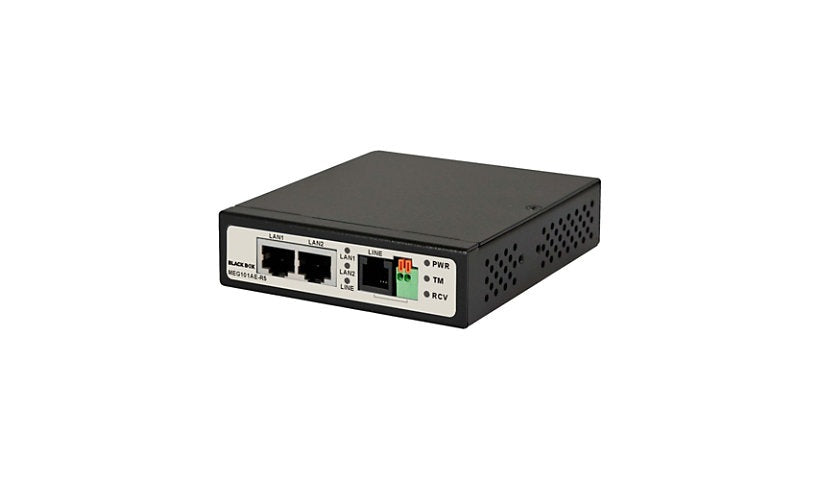

The Black Box MEG101AE-R5 extends Ethernet over a VDSL2 line on existing copper, reaching up to 1.9 miles. It has one RJ-11 VDSL2 port and two 10/100/1000 RJ-45 ports, with a built-in DIP switch to set its role. It is fanless and runs from an external power adapter at about 5 W.
Key Features
- Ethernet over VDSL2 up to 1.9 miles
- Up to 1 Gbps data rate
- 1 x VDSL2 RJ-11, 2 x 10/100/1000 RJ-45
- DIP switch configuration
- Fanless, external power adapter, 5 W
Product Information
Brand: Black Box
Manufacturer: Black Box
Product Line: Black Box
Product Type: Network extender
Packaged Quantity: 1
Color Category: Black, White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Ethernet over VDSL2, Fast Ethernet, Gigabit Ethernet
Cable Type: Ethernet 1000Base-T, Ethernet 100Base-TX, Ethernet 10Base-T, VDSL2
Data Transfer Rate: 1 GBps
Max Transfer Distance: 1.9 miles
Features: Auto-negotiation, Built-in DIP switch, DiscreteMultitone (DMT) modulation, Fanless, Packet Transfer Mode (PTM)
Connectivity
Interface Provided: 1 x VDSL2 - RJ-11, 2 x Ethernet 10/100/1000Base-T - RJ-45
Power
Device Type: External power adapter
Power Consumption Operational: 5 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: External
Status Indicators: LAN, Power, Receive signal, Transmit signal
Dimensions and Weight
Height: 1.1 inch
Width: 4.3 inch
Depth: 3.7 inch
Weight: 21.16 ounce
Certifications and Listing
Compliant Standards: EMC, FCC Class B certified
Compliant Standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, ITU-T G993.2
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
