Product Information

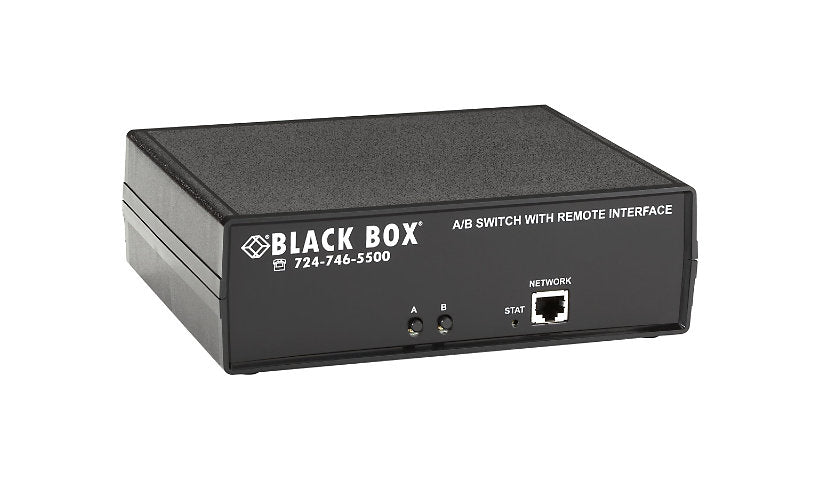

Black Box's SW1041A is a Layer 1 A/B switch for CAT6 links that moves one connection between two paths. You can flip it with the front push button or remotely over Ethernet, RS-232 or dry contact, and it is latching and tested to 1,000,000 cycles. This is a physical A/B switch, not an Ethernet network switch.
Key Features
- 1 x 2 Layer 1 A/B switching, CAT6
- Front push button control
- Remote control via Ethernet, RS-232, dry contact
- Latching, tested to 1,000,000 cycles
- Desktop, external power adapter
Product Information
Brand: Black Box
Manufacturer: Black Box
Product Line: Black Box Remotely Controlled Layer 1 A/B Switch
Model: CAT6, 1 x 2
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Network and Communication
Features: Latching
Connectivity
Interface Provided: 1 x management (LAN) RJ-45, 1 x management 6 pin terminal block, 1 x management DB-9, 3 x LAN RJ-45
Power
Device Type: External power adapter
Frequency: 50 - 60 hertz
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Status Indicators: Status
Dimensions and Weight
Height: 2.5 inch
Width: 6.3 inch
Depth: 8.1 inch
Weight: 3.97 lbs
Certifications and Listing
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
