Product Information

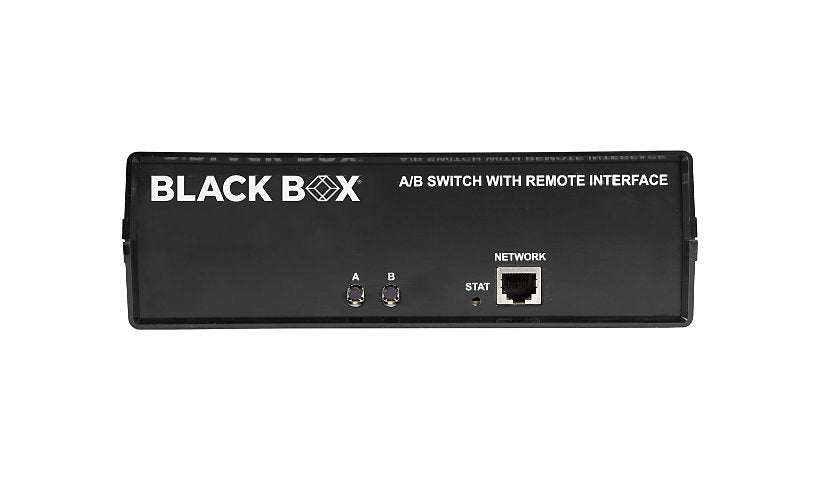

Black Box's SW1046A is a Layer 1 A/B switch for DB9 RS-232 serial links. Switch it with the front push button or remotely over Ethernet, RS-232 or dry contact, and it is tested to 1,000,000 cycles. This is a serial A/B switch, not an Ethernet network switch.
Key Features
- 1 x 2 Layer 1 A/B switching, DB9
- 3 x DB-9 RS-232 serial ports
- Front push button control
- Remote control via Ethernet, RS-232, dry contact
- Tested to 1,000,000 cycles
Product Information
Brand: Black Box
Manufacturer: Black Box
Product Line: Black Box Remotely Controlled Layer 1 A/B Switch
Model: DB9, 1 x 2
Product Type: Switch
Subcategory: Peripheral sharing and hubs
Packaged Quantity: 1
Network and Communication
Switching Type: Serial
Connectivity
Interface Provided: 1 x management (RS-232) DB-9, 3 x serial (RS-232) DB-9, Remote control: 1 x 6 pin terminal block
Power
Device Type: External power adapter
Frequency: 50 - 60 hertz
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Status Indicators: Status
Dimensions and Weight
Height: 2.5 inch
Width: 6.3 inch
Depth: 6.3 inch
Weight: 3.97 lbs
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
