Product Information

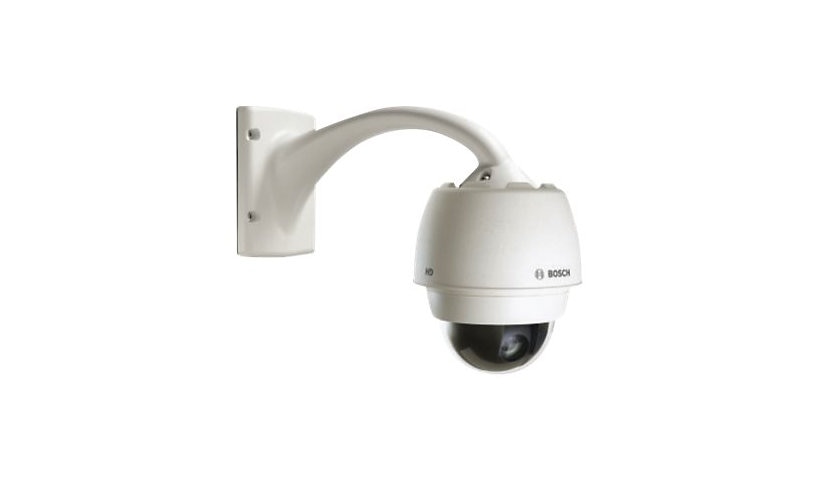

The Bosch AUTODOME IP starlight 7000i NDP-7512-Z30 is an outdoor 1080p PTZ recording at up to 60 fps with a 4.3 to 129 mm lens giving 30x optical zoom. It has starlight imaging, HDR, intelligent defog, video analytics, 256 presets, audio in and out, 7 alarm inputs and 4 outputs, on 24 V AC or PoE+ Class 4. Clear dome cover included. White.
Key Features
- 1080p up to 60 fps
- 30x optical zoom
- Starlight, HDR
- 256 presets
- 7 in / 4 out alarm
- 24 V AC or PoE+
Product Information
Brand: Bosch
Manufacturer: Bosch
Product Line: Bosch AUTODOME IP starlight 7000i
Model: NDP-7512-Z30
Packaged Quantity: 1
Color: RAL 9003, White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Features: 256 preset positions, Auto white balance, Backlight Compensation (BLC), Defog, DORI coverage, High Dynamic Range (HDR), Intelligent Automatic Exposure (iAE), Intelligent defog, Intelligent Dynamic Noise Reduction (iDNR), Intelligent Video Analysis (IVA), Manual white balance, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Privacy Mask Function, Quad video stream, Starlight Technology, Switchable IR filter
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, DHCP, FTP, HTTP, HTTPS, ICMP, IGMPv2, IGMPv3, IPv4, IPv6, LLDP, QOS, RTP, RTSP, SMTP, SNMP 1, SNTP, SSL, TCP/IP, Telnet, TLS, UDP/IP, UPnP
Ports: Audio line in, Audio line out, LAN/power - RJ-45
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
Technical Information
Angular Field of View (H, Max, Degree): 64.7
Focus Modes: Automatic, Manual
Max Focal Length: 129 millimetre
Optical Zoom: 30
Sensor Pixels Effective (H): 1944
Sensor Pixels Effective (V): 1212
Alarm Input Quantity: 7
Alarm Output Quantity: 4
Digital Zoom: 12
Max Panning Speed (degree/sec): 400
Max Tilting Speed (degree/sec): 300
Panning Range (degree): 360
Angular Field of View (H, Min, Degree): 2.3
Camera Iris: Auto and manual iris
Minimum Illumination: 0.0008 lux - B&W - F1.6 - 30 IRE, 0.0077 lux - color - F1.6 - 30 IRE
Total Pixels: 2,350,000 pixels
Video Modes: 1080p, 288p, 432p, 720p
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.6-4.7
Min Focal Length: 4.3 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1280 x 1024, 1280 x 720, 1920 x 1080, 512 x 288, 640 x 480, 704 x 576, 768 x 432
Max Frame Rate: 60 frames per second
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 1 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC, G.711, L16
Touchscreen: No
Max Video Resolution: 1920 x 1080
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 100% (non-condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Camera Mechanical Design: Pan / tilt / zoom
Dimensions and Weight
Height: 11.8 inch
Width: 8.8 inch
Depth: 8.8 inch
Weight: 7.05 lbs
Included Items
Included Accessories: Clear dome cover
