Product Information

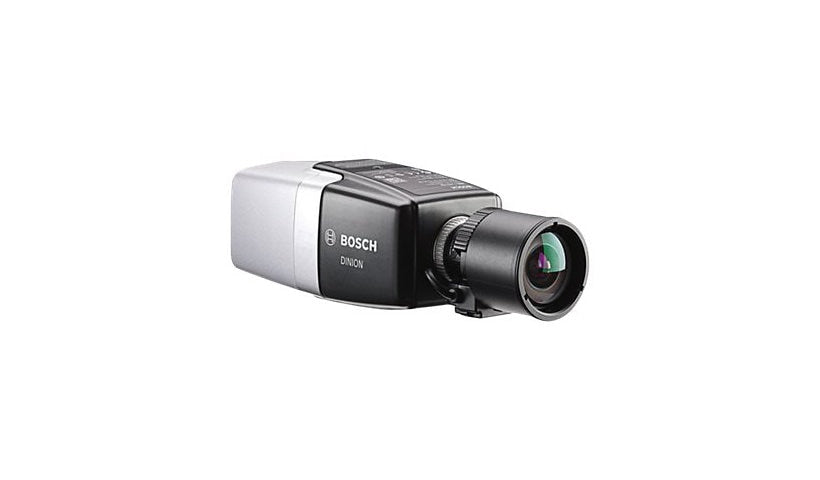

The Bosch DINION IP starlight 7000 HD NBN-73013-BA is a 720p box camera running at up to 60 fps, with a CS lens mount and no lens included. It offers audio, RS-232/RS-485/RS-422, 2 alarm inputs and 1 output, a composite output, and runs on 12 V DC or PoE at 7.2 W.
Key Features
- 720p at 60 fps
- CS mount, no lens
- Audio in and out
- RS-232/485/422
- 2 alarm in, 1 out
- 12 V DC or PoE, 7.2 W
Product Information
Brand: Bosch
Manufacturer: Bosch
Product Line: Bosch DINION IP
Model: starlight 7000 HD
Packaged Quantity: 1
Color: RAL 9007, Titanium metallic
Color Category: Gray, Silver
Network and Communication
Connectivity Technology: Wired
Features: Auto Light Control (ALC), Auto MDI-X, Auto white balance, Automatic electronic shutter, Backlight Compensation (BLC), Brightness control, Contrast control, Defog, Digital image rotation, ePTZ, Event Notification, High Dynamic Range (HDR), Image flip, Image mirror, Intelligent Automatic Exposure (iAE), Line Crossing Detection, Loitering detection, Manual white balance, Manually schedule recording, Noise Reduction, Object Counting, Object Detection, Object Tracking, ONVIF (Profile S) support, Pixel Counter Support, Region of Interest (ROI), Reset button, Saturation control, Video analytics, Wide Dynamic Range (WDR)
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv2, IGMPv3, IPv4, IPv6, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNTP, SSL, TCP/IP, Telnet, UDP/IP, UPnP
Ports: Audio line in - 3.5 mm jack, Audio line out - 3.5 mm jack, Composite video, LAN/power - RJ-45, Serial RS-232/RS-485/RS-422 - terminal block
Power
Low Voltage Power: DC 12 V / PoE Class 3
Power Consumption Operational: 7.2 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
Technical Information
Focus Modes: Motorized
Video Signals: Composite video
Auto Iris Control: DC
Sensor Pixels Effective (H): 1280
Sensor Pixels Effective (V): 720
Alarm Input Quantity: 2
Alarm Output Quantity: 1
Control Interface: RS-232, RS-422, RS-485
Camera Iris: Auto iris
Lens Mount: CS-mount
Minimum Illumination: 0.0008 lux - B&W - F1.2 - 30 IRE, 0.0069 lux - color - F1.2 - 30 IRE
Video Modes: 144p, 240p, 288p, 432p, 480p, 720p
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.2
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1280 x 720, 256 x 144, 352 x 240, 432 x 240, 512 x 288, 704 x 480, 768 x 432, 854 x 480
Max Frame Rate: 60 frames per second
Shutter Speed (Max): 1/15000 second (time unit)
Shutter Speed (Min): 1/25 second (time unit)
Video Formats: H.264, MJPEG, NTSC, PAL
Video Input: Color
Audio Support: Yes
Touchscreen: No
Max Video Resolution: 1280 x 720
Min Operating Temperature: -4 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 20 - 93%
Physical Characteristics
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 2.6 inch
Width: 3.1 inch
Depth: 5.5 inch
Weight: 24.34 ounce
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
