Product Information

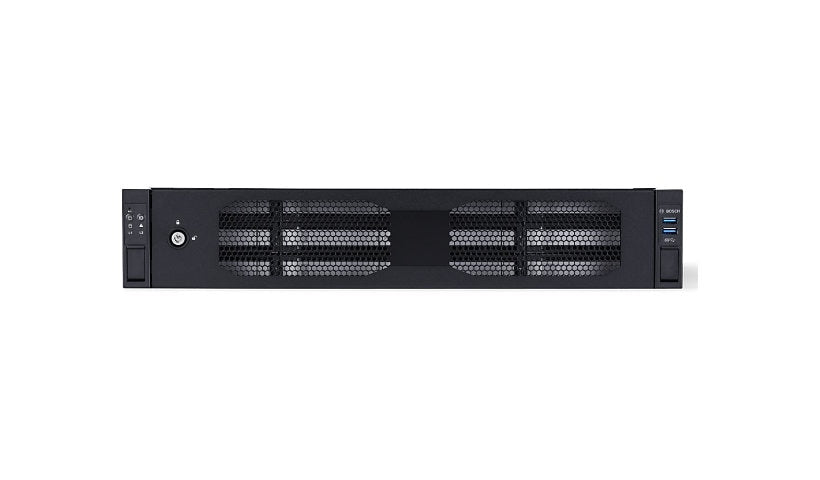

Bosch's DIP-74CI-8HD, the fourth generation DIVAR IP AIO 7000, is a 2U BVMS based recording and management appliance for up to 256 channels, with 8 x 18 TB drives installed (144 TB) of 12 bays in RAID 5, Intel Core i7-12700E, 16 GB RAM, TPM 2.0, dynamic transcoding, 2 gigabit ports with teaming and 2 HDMI 4K outputs. Rail modules, bezel, keys and power cables included. TAA compliant.
Key Features
- Up to 256 channels
- 8 x 18 TB, RAID 5
- Core i7-12700E, 16 GB
- Dynamic transcoding
- 2U rack
- TAA compliant
Product Information
Quantity Installed: 8
Quantity Supported: 12
Brand: Bosch
Manufacturer: Bosch
Product Line: bosch DIVAR IP all-in-one 7000 (gen 4)
Model: DIP-74CI-8HD
Device Type: Standalone NVR
Packaged Quantity: 1
Color Category: Black
Network and Communication
Network Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T
Supported Protocols: SNMP
Network Ports: 10/100/1000Base-T x 2
Features #2: Dynamic Transcoding technology, RAID 5 support
Capacity: 18 TB
Features: Manageable, Port teaming, Trusted Platform Module 2.0 (TPM 2.0)
Features: Dynamic Transcoding technology, RAID 5 support
Connectivity
Additional Ports: USB 3.2 Gen1 x 4
Video Output Ports: HDMI x 2
Power
Input Voltage: 100 - 240 V
Frequency: 50/60 Hz
Memory and Processor
CPU: Intel Core i7-12700E
RAM: 16 GB
Technical Information
Frame Rate (Playback): 30 fps
IP Cameras Supported: 256
Networked: Yes
Interface: Serial ATA
Video Channels: 8
Image Resolution: 3840x2160
Touchscreen: No
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 8 - 90% RH (non-condensing)
Physical Characteristics
Rack-mountable: Rack-mountable
Height (Rack Units): 2
Dimensions and Weight
Height: 3.5 inch
Width: 17.6 inch
Depth: 26 inch
Weight: 46.08 lbs
Included Items
Package Content: 12 labels, 2 keys, 2 rail modules, Cable clamps, Front bezel, NVR, Power cables, Screws
Certifications and Listing
Compliant Standards: BIS, BSMI, CB, China RoHS, CMIM, FCC, KC, NDAA, RCM, RoHS, SABS, UKCA, UL, VCCI, WEEE
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
