Product Information

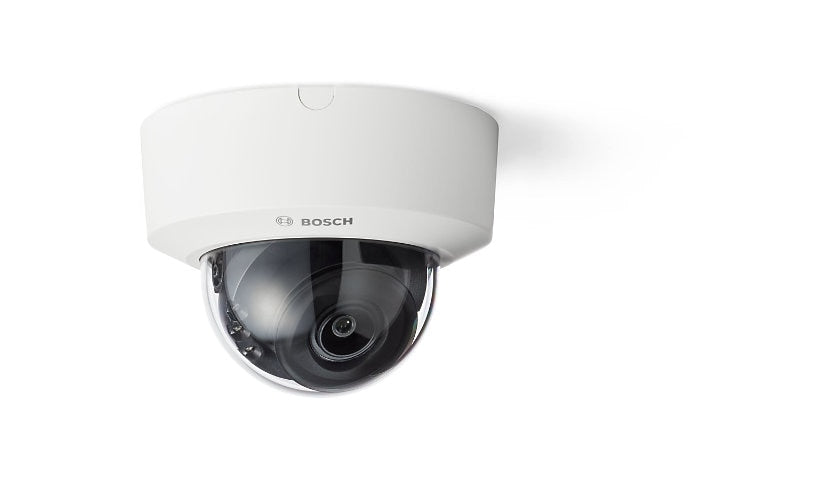

The Bosch FLEXIDOME 3100i IR NDE-3702-AL is a 2 MP dome recording 1080p at 30 fps with a 3.3 to 10.2 mm motorized lens covering 31.2 to 106 degrees. It has HDR, IR up to 98 ft, a TPM secure element, composite out and microSD support, and runs on PoE at 4.2 W. Listed as IP66 and IK10, with an indoor use rating.
Key Features
- 2 MP, 1080p at 30 fps
- 3.3 to 10.2 mm motorized
- IR up to 98 ft
- TPM secure element
- IP66, IK10
- PoE, 4.2 W
Product Information
Brand: Bosch
Manufacturer: Bosch
Product Line: Bosch FLEXIDOME 3100i IR
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Encryption: 128-bit AES, 256-bit AES, 256-bit AES-CBC, 4096-bit RSA, AES-XTS, MD5, PKI, SHA-1, SHA-256, TLS 1.2, TLS 1.3
Features: 180° image rotation, 270° image rotation, 2D tracking, 802.1x authentication, 90° image rotation, Aluminum housing, Automatic electronic shutter, Backlight Compensation (BLC), Bosch Intelligent Streaming, Brightness control, Digest authentication, Display stamping, High Dynamic Range (HDR), HTTPs encryption, Image mirror, Infrared-cut filter, Intelligent defog, Intelligent Video Analytics Pro (IVA Pro), IR Corrected lens, Line Crossing Detection, Object Detection, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Person Detection, Pixel Counter Support, Polycarbonate bubble, Privacy masking (up to 8 areas), Saturation control, Scratch-resistant, Secure Boot, Sharpness enhancement, Signed firmware, Switchable IR filter, Tamper-detection, Upright mode, Vehicle Detection, Watermark
Connectivity
Network Interface: Ethernet 10Base-T/100Base-T
Protocols: APIPA, ARP, DDNS, DHCP, DNS, DNSv6, EAP, FTP, HTTP, HTTPS, ICMP, ICMPv6, IGMPv2, IGMPv3, IPv4, IPv6, LLDP, NTP, ONVIF, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 3, SNTP, SOAP, TCP, TLS, UDP, UPnP
Ports: Composite video, LAN - RJ-45
Power
Low Voltage Power: PoE Plus Class 3
Power Consumption Operational: 4.2 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
Technical Information
Angular Field of View (H, Max, Degree): 106
Angular Field of View (V, Max, Degree): 55.2
Focus Modes: Motorized
Infrared Distance: 98 ft
Infrared LEDs: Yes
Video Signals: Composite video
Auto Iris Control: DC
Max Focal Length: 10.2 millimetre
Optical Zoom: 3.1
Sensor Pixels Effective (H): 1920
Sensor Pixels Effective (V): 1080
Tilt: 0 to 85
Motion Detection: Yes
Panning Range (degree): 0 to 355
Angular Field of View (H, Min, Degree): 31.2
Angular Field of View (V, Min, Degree): 17.5
Camera Iris: Auto iris
Minimum Illumination: 0 lux - IR, 0.016 lux - B&W, 0.06 lux - color - F1.6
Total Pixels: 2,000,000 pixels
Video Modes: 1080p
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.6-3.29
Min Focal Length: 3.3 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1920 x 1080, 512 x 288
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/15000 second (time unit)
Shutter Speed (Min): 1/30 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, HEVC, MJPEG, NTSC, PAL
Video Input: Color
Touchscreen: No
Max Video Resolution: 1920 x 1080
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 95% RH (non-condensing)
Physical Characteristics
Indoor/Outdoor: Indoor
Protection: Dust resistant / water resistant / vandal resistant
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 4.4 inch
Width: 5.4 inch
Depth: 5.4 inch
Weight: 27.85 ounce
Included Items
Included Accessories: 3 installer UX labels, Mounting template, RJ-45 guider, TR20 Allen key
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
