Product Information

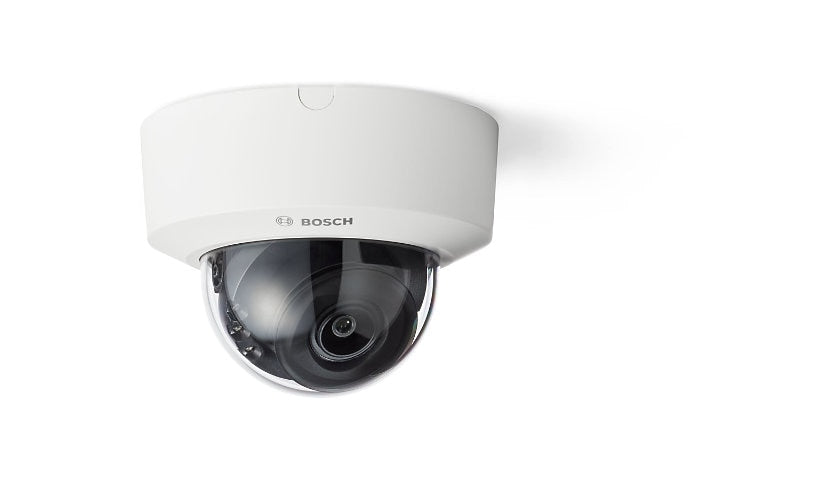

The Bosch FLEXIDOME 3100i IR NDE-3703-AL is a 5 MP outdoor dome recording 2592 x 1944 at 30 fps with a 3.3 to 10.2 mm motorized varifocal lens (3.1x). It has HDR, IR up to 98 ft, IVA Pro Buildings analytics, 2D tracking and CVBS output, and draws 7.9 W. IP66, mounting template included.
Key Features
- 5 MP, 2592 x 1944
- 3.3 to 10.2 mm, 3.1x
- IR up to 98 ft
- HDR
- IVA Pro Buildings
- IP66 outdoor
Product Information
Brand: Bosch
Manufacturer: Bosch
Product Line: Bosch FLEXIDOME 3100i IR
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Encryption: 128-bit AES, 256-bit AES, 256-bit AES-CBC, 4096-bit RSA, MD5, PKI, RSA, SHA-1, SHA-256, TLS 1.2, TLS 1.3, XTS
Features: -10° / +10° tilt, 180° image rotation, 270° image rotation, 2D tracking, 55 dB signal-to-noise ratio, 802.1x authentication, 850nm illuminator, 90° image rotation, Alarm function, Aluminum alloy housing, Auto privacy shutter, Backlight Compensation (BLC), Bosch Protocol, Brightness control, DORI coverage, False alarm reduction, High Dynamic Range (HDR), HTTPs encryption, Image mirror, Image time stamp, Infrared-cut filter, Intelligent defog, Intelligent Video Analytics Pro (IVA Pro), IR Corrected lens, Line Crossing Detection, Object Detection, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Person Detection, Pixel Counter Support, Polycarbonate bubble, Privacy masking (up to 8 areas), Saturation control, Scratch-resistant, Secure Boot, Sharpness enhancement, Signed firmware, Tamper-detection, Triple streams, Trusted Platform Module (TPM), Upright mode, Vehicle Detection, Watermark
Connectivity
Network Interface: Ethernet 10Base-T/100Base-T
Protocols: APIPA, ARP, DDNS, DHCP, DNS, DNSv6, EAP, FTP, HTTP, HTTPS, IGMPv2, IGMPv3, IPv4, IPv6, LLDP, NTP, ONVIF, QOS, RTCP, RTP, SMTP, SNMP 1, SNMP 3, SNTP, SOAP, TCP, TLS, UDP, UPnP
Ports: LAN/power - RJ-45
Power
Power Consumption Operational: 7.9 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
Technical Information
Angular Field of View (H, Max, Degree): 101.4
Angular Field of View (V, Max, Degree): 69.6
Focus Modes: Motorized
Infrared Distance: 98 ft
Infrared LEDs: Yes
Video Signals: CVBS
Auto Iris Control: DC
Max Focal Length: 10.2 millimetre
Optical Zoom: 3.1
Sensor Pixels Effective (H): 2592
Sensor Pixels Effective (V): 1944
Alarm Input Quantity: 5
Alarm Output Quantity: 5
Tilt: 0 to 85
Motion Detection: Yes
Panning Range (degree): 0 to 355
Angular Field of View (H, Min, Degree): 30.1
Angular Field of View (V, Min, Degree): 21.8
Camera Iris: Auto iris
Minimum Illumination: 0 lux - IR, 0.03 lux - B&W, 0.14 lux - color - F1.6
Total Pixels: 5,000,000 pixels
Video Modes: 1944p
Image Sensor Size: 1/2.7"
Image Sensor Type: CMOS
Lens Aperture: F/1.6-3.29
Min Focal Length: 3.3 millimetre
Sensor Size (metric): 9.4 mm (1/2.7")
Digital Video Capture Resolution: 2592 x 1456, 2592 x 1944, 320 x 240, 512 x 288
Max Frame Rate: 30 frames per second
Focal Length Control: Vari-focal
Video Formats: H.264, H.265, HEVC, MJPEG, NTSC, PAL
Video Input: Color
Touchscreen: No
Max Video Resolution: 2592 x 1944
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 95% RH (non-condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Dust resistant / water resistant / vandal resistant
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 4.4 inch
Width: 5.4 inch
Depth: 5.4 inch
Weight: 27.85 ounce
Included Items
Included Accessories: 3 installer UX labels, Mounting template, RJ-45 guider, TR20 Allen key
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
