Product Information

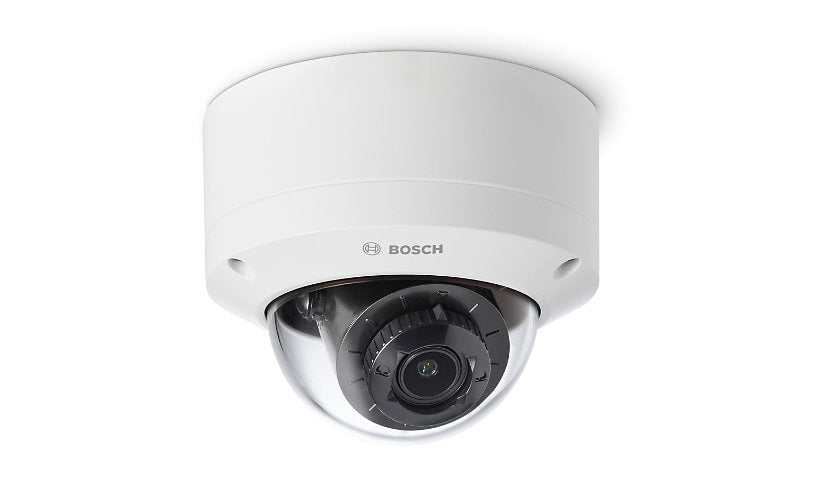

The Bosch FLEXIDOME 5100i NDV-5702-A is a 2 MP indoor dome recording 1080p at up to 60 fps with a 3.2 to 10.5 mm motorized lens (3.3x). It has Bosch Intelligent Streaming, two way audio and USB-C, and runs on 48 V DC or PoE Class 3 at 4.8 W. Mount plate and conduit adapters included.
Key Features
- 2 MP, up to 60 fps
- 3.2 to 10.5 mm motorized
- Two way audio
- Intelligent Streaming
- 48 V DC or PoE
- Indoor, vandal resistant
Product Information
Brand: Bosch
Manufacturer: Bosch
Product Line: Bosch FLEXIDOME 5100i
Model: NDV-5702-A
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Encryption: 128-bit AES, 256-bit AES, 256-bit AES-CBC, 4096-bit RSA, AES-XTS, MD5, SHA-1, SHA-256, TLS 1.2, TLS 1.3
Features: 180° image rotation, 270° image rotation, 90° image rotation, Audio Detection, Auto MDI-X, Auto white balance, Automatic electronic shutter, Backlight Compensation (BLC), Bosch Intelligent Streaming, Brightness control, Built-in gyroscope, Digest authentication, Display stamping, Electronic image stabilization, Full duplex audio, Half duplex audio, HDR, Image mirror, Infrared-cut filter, Intelligent defog, Intelligent Video Analytics Pro (IVA Pro), IR Corrected lens, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Pixel Counter Support, Privacy masking (up to 8 areas), Saturation control, Scratch-resistant, Secure Boot, Sharpness enhancement, Signed firmware, Upright mode, Watermark, Wide Dynamic Range (WDR)
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: APIPA, ARP, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IGMPv2, IGMPv3, IPv4, IPv6, LLDP, NTP, QOS, RTCP, RTP, RTSP, RTSPS, SCEP, SMTP, SNMP 1, SNMP 3, SOAP, SRTP, TCP, UDP, UPnP
Ports: Audio line in, Audio line out, LAN - RJ-45, USB 2.0 - Type C
Power
Low Voltage Power: DC 48 V / PoE Class 3
Power Consumption Operational: 4.8 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
Technical Information
Angular Field of View (H, Max, Degree): 105
Angular Field of View (V, Max, Degree): 57
Focus Modes: Motorized
Auto Iris Control: P-Iris
Max Focal Length: 10.5 millimetre
Optical Zoom: 3.3
Sensor Pixels Effective (H): 1920
Sensor Pixels Effective (V): 1080
Tilt: 85
Panning Range (degree): 355
Angular Field of View (H, Min, Degree): 31
Angular Field of View (V, Min, Degree): 18
Camera Iris: Auto iris
Minimum Illumination: 0.004 lux - B&W, 0.021 lux - color
Total Pixels: 2,000,000 pixels
Video Modes: 1080p, 720p
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.6
Min Focal Length: 3.2 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1280 x 720, 1536 x 864, 1920 x 1080, 768 x 432
Max Frame Rate: 60 frames per second
Shutter Speed (Max): 1/15000 second (time unit)
Shutter Speed (Min): 1/25 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, G.711, L16
Audio Support Features: Two-way audio capability
Touchscreen: No
Max Video Resolution: 1920 x 1080
Min Operating Temperature: -4 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 93% (non-condensing)
Physical Characteristics
Indoor/Outdoor: Indoor
Protection: Dust resistant / water resistant / vandal resistant
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 4.8 inch
Width: 5.8 inch
Depth: 5.8 inch
Weight: 32.45 ounce
Included Items
Included Accessories: Allen key, Cable conduit adapter plate (1/2"/M20), Cable conduit adapter plate (3/4"/M25), Mount plate, RJ-45 guider, Terminal block
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
