Product Information

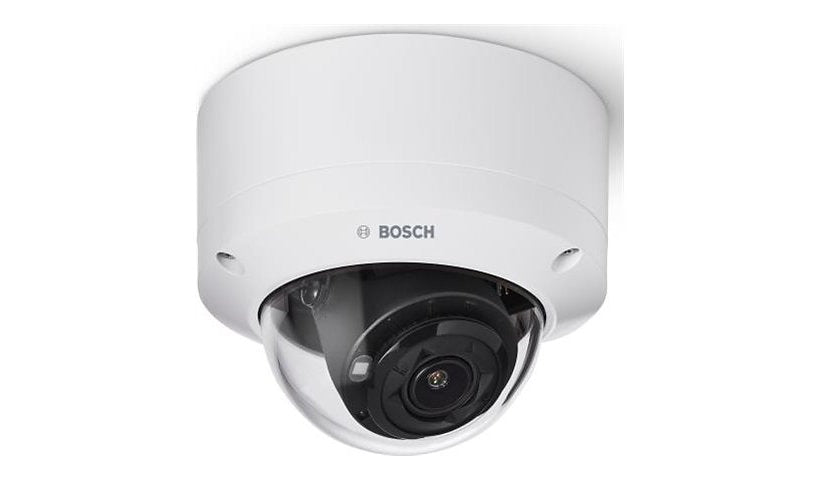

The Bosch FLEXIDOME indoor 5100 IR NDV-5702-AL is a 2 MP indoor dome recording 1080p at 60 fps with a 3.2 to 10.5 mm motorized lens covering 31 to 105 degrees. It has IR up to 148 ft, a built in mic with two way audio, intelligent defog and audio detection, and draws 4.8 W. Surface mount.
Key Features
- 2 MP, 1080p at 60 fps
- 3.2 to 10.5 mm motorized
- 31 to 105 degree view
- IR up to 148 ft
- Mic, two way audio
- Indoor, 4.8 W
Product Information
Brand: Bosch
Manufacturer: Bosch
Product Line: Bosch FLEXIDOME indoor 5100 IR
Packaged Quantity: 1
Color: Black, RAL 9003, RAL 9017, White
Color Category: Black, White
Network and Communication
Connectivity Technology: Wired
Features: Audio Detection, Auto white balance, Automatic electronic shutter, Backlight Compensation (BLC), Brightness control, Contrast control, Image flip, Image mirror, Intelligent defog, Intelligent Dynamic Noise Reduction (iDNR), iSCSI support, Manual white balance, Motion detector design, ONVIF (Profile G) support, ONVIF (Profile S) support, Pixel Counter Support, Privacy Mask Function, Progressive scanning, Quad video stream, Saturation control, Tamper-detection, Video analytics, Wide Dynamic Range (WDR)
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Power
Power Consumption Operational: 4.8 watt
Technical Information
Angular Field of View (H, Max, Degree): 105
Angular Field of View (V, Max, Degree): 57
Focus Modes: Motorized
Infrared Distance: 148 ft
Infrared LEDs: Yes
Auto Iris Control: P-Iris
Max Focal Length: 10.5 millimetre
Sensor Pixels Effective (H): 1920
Sensor Pixels Effective (V): 1080
Video Capture: 1920 x 1080 @ 60 fps
Camera Type: Network surveillance camera
Camera Mount Type: Surface mount
Motion Detection: Yes
Angular Field of View (H, Min, Degree): 31
Angular Field of View (V, Min, Degree): 18
Camera Iris: Auto iris
Lens Mount: Board mount
Total Pixels: 2,000,000 pixels
Video Modes: 1080p, 240p, 480p, 720p
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.6
Min Focal Length: 3.2 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Night Vision: Yes
Digital Video Capture Resolution: 1280 x 720, 1536 x 864, 1920 x 1080, 768 x 432
Max Frame Rate: 60 frames per second
Shutter Speed (Max): 1/15000 second (time unit)
Shutter Speed (Min): 1/30 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, HEVC, MJPEG, NTSC, PAL
Video Input: Color
Audio Support: Yes
Audio Support Features: Built-in microphone, Two-way audio capability
Touchscreen: No
Max Video Resolution: 1920 x 1080
Min Operating Temperature: -4 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 93% (non-condensing)
Physical Characteristics
Indoor/Outdoor: Indoor
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 4.8 inch
Width: 5.8 inch
Depth: 5.8 inch
Weight: 32.45 ounce
