Product Information

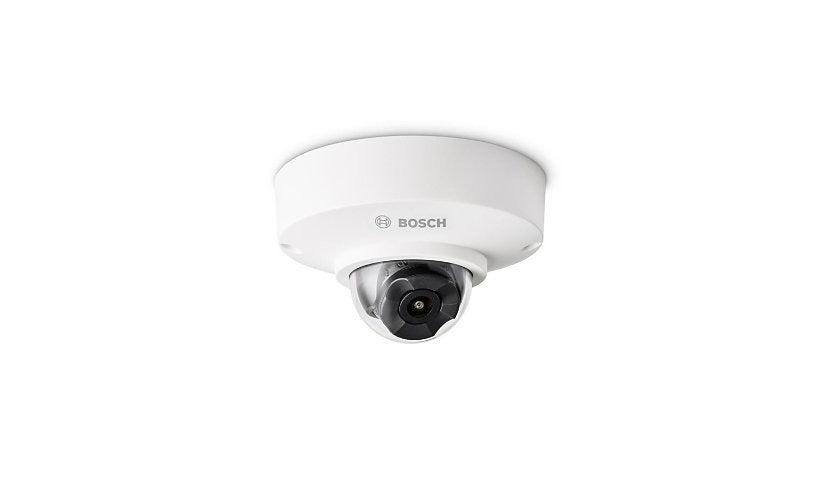

The Bosch FLEXIDOME micro 3100i NUV-3702-F04H is a small 2 MP indoor dome recording 1080p at 30 fps through a 3.2 mm lens with a 106 degree view. It has 2D tracking, a micro HDMI output and impact protection, and runs on PoE Class 3 at 3.2 W. Allen key and mounting template included.
Key Features
- 2 MP, 1080p at 30 fps
- 3.2 mm, 106 degree view
- Micro HDMI output
- 2D tracking
- Impact protection
- PoE Class 3, indoor
Product Information
Brand: Bosch
Manufacturer: Bosch
Product Line: Bosch FLEXIDOME micro 3100i
Model: NUV-3702-F04H
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Encryption: 128-bit AES, 256-bit AES, AES-XTS, MD5, SHA-1, SHA-256, TLS 1.2, TLS 1.3
Features: 180° image rotation, 270° image rotation, 2D tracking, 90° image rotation, Auto white balance, Automatic electronic shutter, Backlight Compensation (BLC), Brightness control, Digest authentication, Display stamping, HDR, Intelligent defog, Intelligent Video Analytics Pro (IVA Pro), ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Pixel Counter Support, Privacy masking (up to 8 areas), Saturation control, Scratch-resistant, Sharpness enhancement, Tamper-detection, Trusted Platform Module (TPM), Upright mode, Watermark
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: APIPA, ARP, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv2, IGMPv3, IPv4, IPv6, LLDP, NTP, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 3, SOAP, TCP, UDP, UPnP
Ports: LAN - RJ-45, Micro-HDMI
Power
Low Voltage Power: PoE Class 3
Power Consumption Operational: 3.2 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
Technical Information
Video Signals: HDMI
Sensor Pixels Effective (H): 1920
Sensor Pixels Effective (V): 1080
Tilt: 0 to 75
Panning Range (degree): 0 to 355
Angular Field of View (H, Min, Degree): 106
Angular Field of View (V, Min, Degree): 56
Minimum Illumination: 0.1 lux - color
Total Pixels: 2,000,000 pixels
Video Modes: 1080p
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.6
Min Focal Length: 3.2 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1920 x 1080, 512 x 288
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/15000 second (time unit)
Shutter Speed (Min): 1/25 second (time unit)
Focal Length Control: Fixed focal
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Touchscreen: No
Max Video Resolution: 1920 x 1080
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 93% (non-condensing)
Physical Characteristics
Indoor/Outdoor: Indoor
Protection: Impact protection
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 2.6 inch
Width: 4.3 inch
Depth: 4.3 inch
Weight: 8.11 ounce
Included Items
Included Accessories: 3 installer UX labels, Allen key, Mounting template sticker
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
