Product Information

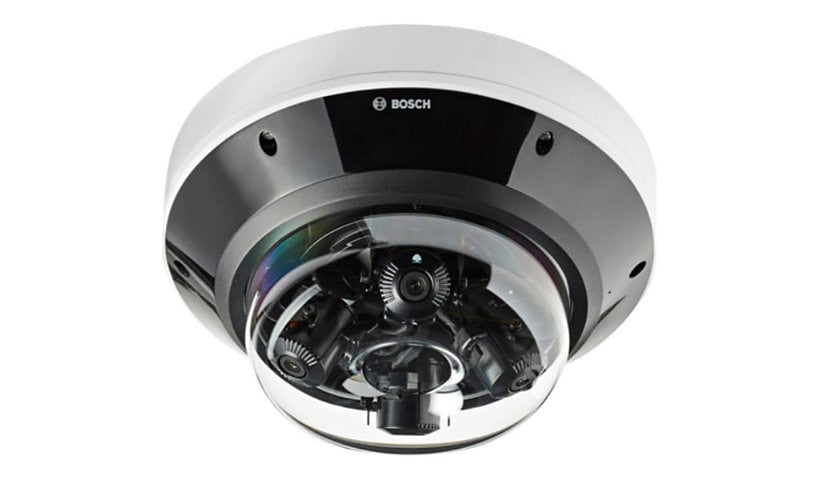

The Bosch FlexiDome multi 7000i IR NDM-7702-AL is a multisensor dome with four 3 MP sensors and 3.7 to 7.7 mm motorized lenses (2.1x), recording up to 2590 x 1944 at 30 fps for indoor or outdoor use. It has IR up to 98 ft, a mic with two way audio, alarm in and out and USB-C for Wi-Fi setup, and runs on 24 V AC or PoE+ Class 4. Vandal and weatherproof.
Key Features
- Four 3 MP sensors
- 3.7 to 7.7 mm motorized
- IR up to 98 ft
- Mic, two way audio
- Alarm I/O
- 24 V AC or PoE+
Product Information
Brand: Bosch
Manufacturer: Bosch
Product Line: Bosch FlexiDome multi 7000i IR
Model: NDM-7702-AL
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Features: 12m recognize distance (3.7mm lens), 15m identify distance (7.7mm lens), 22m observe distance (3.7mm lens), 30m recognize distance (7.7mm lens), 56m detection distance (3.7mm lens), 56m detection distance (7.7mm lens), 59m observe distance (7.7mm lens), 6m identify distance (3.7mm lens), Automatic electronic shutter, Backlight Compensation (BLC), High Dynamic Range (HDR), Intelligent Video Analysis (IVA), Manual white balance, Noise Reduction, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Privacy Mask Function
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: ARP, DHCP, FTP, HTTP, HTTPS, ICMP, IGMPv2, IGMPv3, IPv4, IPv6, LLDP, QOS, RTP, RTSP, SMTP, SNMP 1, SNTP, SSL, TCP/IP, Telnet, TLS, UDP/IP, UPnP
Ports: Audio line in, Audio line out, LAN/power - RJ-45, USB-C (for use with Wi-Fi dongle for setup and commissioning)
Power
Low Voltage Power: AC 24 V / PoE Plus Class 4
Power Consumption Operational: 18.02 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
Technical Information
Infrared Distance: 98 ft
Infrared LEDs: Yes
Auto Iris Control: DC
Max Focal Length: 7.7 millimetre
Optical Zoom: 2.1
Sensor Pixels Effective (H): 2592
Sensor Pixels Effective (V): 1944
Alarm Input Quantity: 1
Alarm Output Quantity: 1
Tilt: 0 to 105
Panning Range (degree): 0 to 360
Angular Field of View (H, Min, Degree): 62.4
Angular Field of View (V, Min, Degree): 85.6
Camera Iris: Auto iris
Minimum Illumination: 0.012 lux - B&W, 0.091 lux - color
Total Pixels: 4 x 3,000,000 pixels
Image Sensor Size: 4 x 1/2.7"
Image Sensor Type: CMOS
Lens Aperture: F/1.9
Min Focal Length: 3.7 millimetre
Sensor Size (metric): 4 x 9.4 mm (1/2.7")
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/15000 second (time unit)
Shutter Speed (Min): 1/30 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, G.711, L16
Audio Support Features: Built-in microphone, Two-way audio capability
Max Video Resolution: 2590 x 1944
Min Operating Temperature: -58 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 5 - 93% (non-condensing)
Physical Characteristics
Indoor/Outdoor: Indoor, Outdoor
Protection: Vandal / weatherproof
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 4.4 inch
Width: 8.7 inch
Depth: 8.7 inch
Weight: 5.14 lbs
Included Items
Included Accessories: 2 x M20 rubber grommets, 2-pin power connector, 3 installer UX labels, 8-pin audio and I/O connector, Mounting bracket, RJ-45 punch-through aid, TR20 Allen key
