Product Information

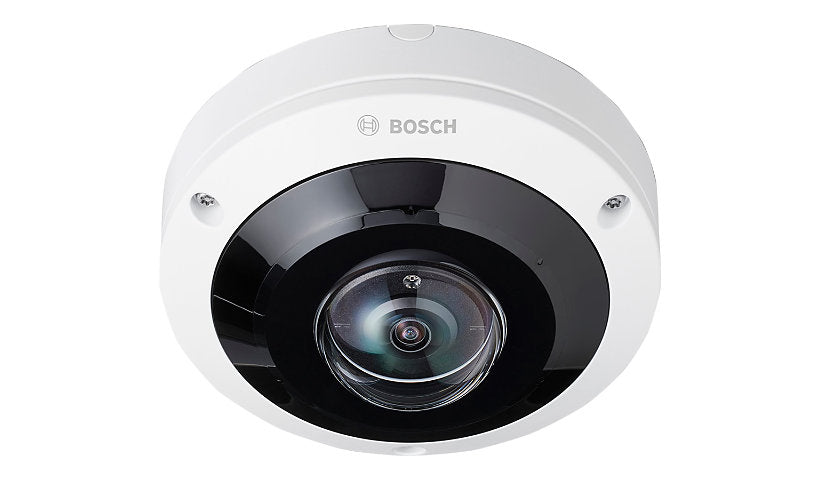

The Bosch FLEXIDOME panoramic 5100i IR NDS-5704-F360LE is a 12 MP panoramic dome recording 3008 x 3008 at 30 fps through a 1.26 mm lens for full 360 degree coverage without blind spots. It has IR up to 66 ft, three built in mics with two way audio, alarm in and out and a micro HDMI output, and runs on 12 V DC, 24 V AC or PoE+ at 11.4 W. Indoor or outdoor, white.
Key Features
- 12 MP, 3008 x 3008
- 360 degree panoramic
- IR up to 66 ft
- Three mics, two way audio
- Micro HDMI, alarm I/O
- 12 V DC, 24 V AC or PoE+
Product Information
Brand: Bosch
Manufacturer: Bosch
Product Line: Bosch FLEXIDOME panoramic 5100i IR
Model: NDS-5704-F360LE
Packaged Quantity: 1
Color: RAL 9003, White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Features: Automatic electronic shutter, Backlight Compensation (BLC), Cloud recording, CorridorView, Defog, DORI coverage, Dynamic Range Adjustment, E-mail alerts, ePTZ, Infrared cut filter, Intelligent Automatic Exposure (iAE), Intelligent Video Analysis (IVA), ONVIF (Profile G) support, ONVIF (Profile Q) support, ONVIF (Profile S) support, Panoramic view, Privacy Mask Function, Sharpness control, SMS alerts, Tamper-detection, Video analytics
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: APIPA, ARP, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv2, IGMPv3, IPv4, IPv6, NTP, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNTP, TCP/IP, Telnet, UDP/IP, UPnP
Ports: Audio line in, Audio line out, LAN/power - RJ-45, Micro-HDMI
Power
Low Voltage Power: DC 12 V / AC 24 V / PoE Plus Class 3
Power Consumption Operational: 11.4 watt
Memory and Processor
Memory Cards Supported: microSDHC Card, microSDXC Card
Technical Information
Angular Field of View (H, Max, Degree): 182
Angular Field of View (V, Max, Degree): 182
Infrared Distance: 66 ft
Video Signals: HDMI
Alarm Input Quantity: 1
Alarm Output Quantity: 1
Camera Iris: Fixed iris
Lens Mount: Board mount
Min Focus Distance: 3.9 inch
Minimum Illumination: 0 lux - IR, 0.048 lux - B&W, 0.15 lux - color
Total Pixels: 12,000,000 pixels
Image Sensor Size: 1/2.3"
Image Sensor Type: CMOS
Min Focal Length: 1.26 millimetre
Sensor Size (metric): 11 mm (1/2.3")
Max Frame Rate: 30 frames per second
Focal Length Control: Fixed focal
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, G.711, L16
Audio Support Features: Built-in three microphones, Two-way audio capability
Touchscreen: No
Max Video Resolution: 3008 x 3008
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 93% (non-condensing)
Physical Characteristics
Indoor/Outdoor: Indoor, Outdoor
Protection: Vandal / weatherproof
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 2.8 inch
Width: 5.8 inch
Depth: 5.8 inch
Weight: 28.92 ounce
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
