Product Information

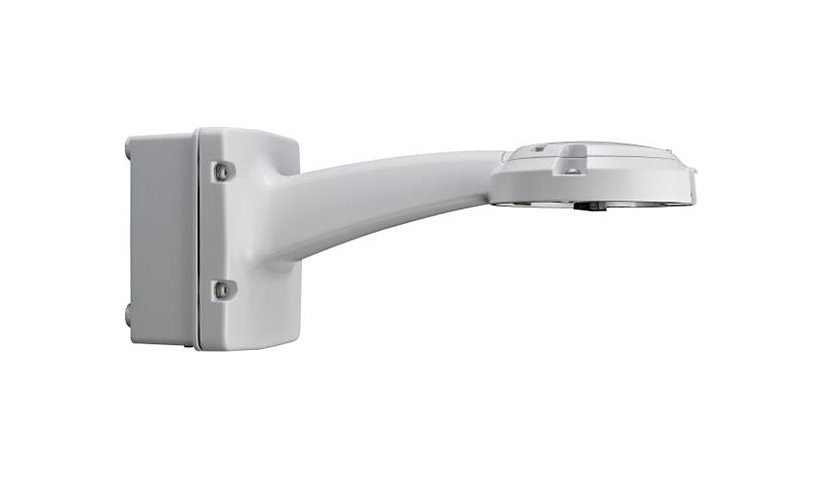

The Bosch NDA-7100-PA1HF is a signal white (RAL 9003) aluminum wall mount arm with a built in power supply that takes 120 V AC and outputs 24 V AC, with a powder coated sand finish and dust and water protection. Camera not included.
Key Features
- Wall arm with PSU
- 120 V AC input
- 24 V AC output
- Sand finish aluminum
- Dust and water protection
- Camera not included
Product Information
Brand: Bosch
Manufacturer: Bosch
Product Line: Bosch
Product Type: Camera mount
Category of Accessory: Camera accessories, Mounting hardware
Packaged Quantity: 1
Color: RAL 9003, Signal white
Color Category: White
Network and Communication
Features: 120 V AC input voltage, 24 V AC output voltage, Dust protection, Powder-coated, Sand finish, Water protection
Technical Information
Touchscreen: No
Min Operating Temperature: -76 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Physical Characteristics
Placement: Wall mountable
Materials: Aluminum
Dimensions and Weight
Height: 8.5 inch
Width: 20.6 inch
Depth: 7.3 inch
Certifications and Listing
Compliant Standards: CAN/CSA C22.2 No. 62368-1-1, CISPR 32 Class A, CSA C22.2 No. 62368-1:19, EMC, EN 50130-4:2011, EN 55032:2015+A11:2020 Class A, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 62368-1:2014+A11:2017, EN IEC 62368-1:2020+A11:2020, EN/IEC 63000:2018, FCC 47 CFR Part 15 B Class A, ICES-003 issue 7, IEC 62368-1: 2014, IEC 62368-1:2018, IK10, IP66, RoHS, UL 62368-1 Second Edition, UL 62368-1 Third Edition
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
