Product Information

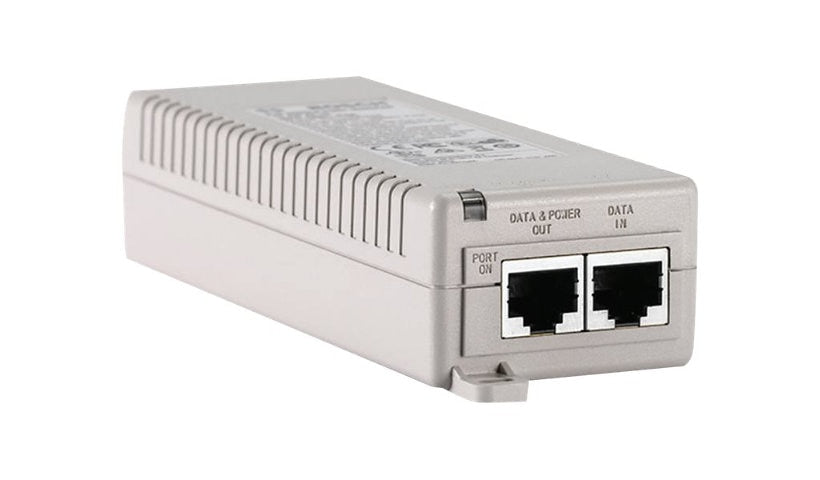

The Bosch NPD-5001-POE adds PoE to an existing network to power one PoE camera, supplying 15.4 W at 48 V over a Gigabit link. It runs on 100 to 240 V AC and is listed for Bosch FLEXIDOME panoramic 5100i, DINION IP 3000i IR and FlexiDome 3000i IR cameras.
Key Features
- 1 x Gigabit PoE output
- 15.4 W at 48 V
- AC 100-240 V input
- For Bosch DINION, FlexiDome and panoramic 5100i
Product Information
Brand: Bosch
Manufacturer: Bosch
Product Line: Bosch
Model: NPD-5001-POE
Product Type: PoE Injector
Subcategory: Power converters, splitters and accessories
Compatibility Specs: Bosch DINION IP 3000i IR NBE-3502-AL, NBE-3503-AL-P ¦ Bosch FlexiDome IP 3000i IR NDE-3503-AL-P ¦ Bosch FLEXIDOME panoramic 5100i NDS-5703-F360 ¦ Bosch FLEXIDOME panoramic 5100i IR NDS-5704-F360LE
Packaged Quantity: 1
Color Category: White
Connectivity
Interface Provided: 1 x Gigabit LAN - RJ-45
Power Over Ethernet (PoE): PoE
Output Connector Quantity: 1
Power
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Input Connector Type: Power IEC 60320
Power Output Connectors Details: 1 x RJ-45
Power Provided: 15.4 watt
Form Factor (Power Device): External
Input Connectors: 1
Output Connector Type: RJ-45
Provided Voltage: 48 volt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 0 - 90% (non-condensing)
Dimensions and Weight
Height: 1.3 inch
Width: 2.1 inch
Depth: 5.5 inch
Weight: 7.05 ounce
Included Items
Cables: Power cable
Certifications and Listing
Compliant Standards: cUL, EN 60950, EN55022 Class B, EN55024, FCC Part 15 B, GS, RoHS, UL, VCCI, WEEE
Compliant Standards: IEEE 802.3af
ENERGY STAR Certified: No
Warranty
Service Activation: No
