Product Information

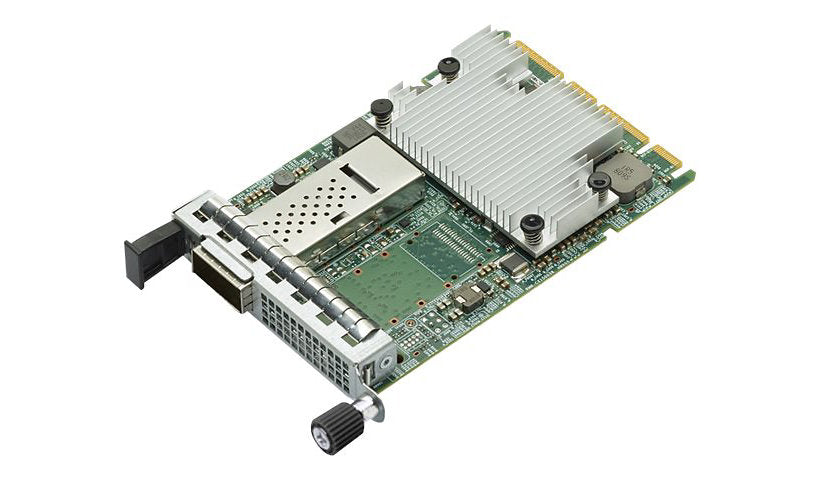

Broadcom's BCM957504-N1100G is a one port 100 Gigabit adapter with a QSFP56 cage, built on the BCM57504 controller, and it accepts QSFP56, QSFP28 or QSFP+ optics and direct attach copper cables. It supports DCB, iSCSI boot, LRO and LSO, GENEVE and GRE offloads, NC-SI and 9 KB jumbo frames. The spec lists a PCIe 4.0 x16 card while the description calls it an OCP 3.0 adapter, so please confirm the form factor.
Key Features
- 1 x 100GbE QSFP56 port
- Broadcom BCM57504
- Optics or DAC cables
- DCB and iSCSI boot
- GENEVE offload
- Confirm OCP or PCIe
Product Information
Brand: Broadcom
Manufacturer: BROADCOM
Product Line: Broadcom
Model: BCM957504-N1100G
Product Type: Network adapter
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 100 Gigabit Ethernet
Features: 9 KB Jumbo Frame, Data Center Bridging Exchange (DCBX) support, Enhanced transmission selection (ETS), Extended Message-Signaled Interrupts (MSI-X), Function Level Reset (FLR), Generic Routing Encapsulation (GRE), GENEVE support, Interrupt coalescing, iSCSI boot, Large Receive Offload (LRO), Large Send Offload (LSO), MCTP over SMBus, Message Signaled Interrupts (MSI), Network Controller Sideband Interface (NC-SI), Network Virtualization using Generic Routing Encapsulation (NVGRE), Open Compute Project (OCP) 3.0 support, Priority-Based Flow Control (PFC), PXE support, Quantized Congestion Notification (QCN), RDMA over Converged Ethernet (RoCE), Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), SMBus 2.0, TCP Segmentation Offload (TSO), TCP/IP checksum offload, Transmit Side Scaling (TSS), TruFlow, Tunnel-aware stateless offloads, UDP/IP checksum offload, UEFI support, Virtual Extensible LAN (VXLAN), VMware NetQueue and Microsoft Virtual Machine Queue (VMQ), vSwitch Acceleration, Wake On LAN (WOL)
Connectivity
PCI Specification Revision: PCIe 4.0
Port Quantity: 1
Interface Provided: 1 x 100Gb Ethernet - QSFP56
Network & Adapter Ports: 100 Gigabit QSFP56
Host Interface: PCI Express 4.0 x16
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: Up to 95% (non-condensing)
Physical Characteristics
Form Factor: Plug-In Card
Status Indicators: Link/activity
Dimensions and Weight
Weight: 3.17 ounce
Certifications and Listing
Compliant Standards: Halogen-free, MSA SFF-8402
Not sure this adapter or module fits your system? Send us your server, switch or storage model and the DatorPro team will confirm compatibility before you order.
