Product Information

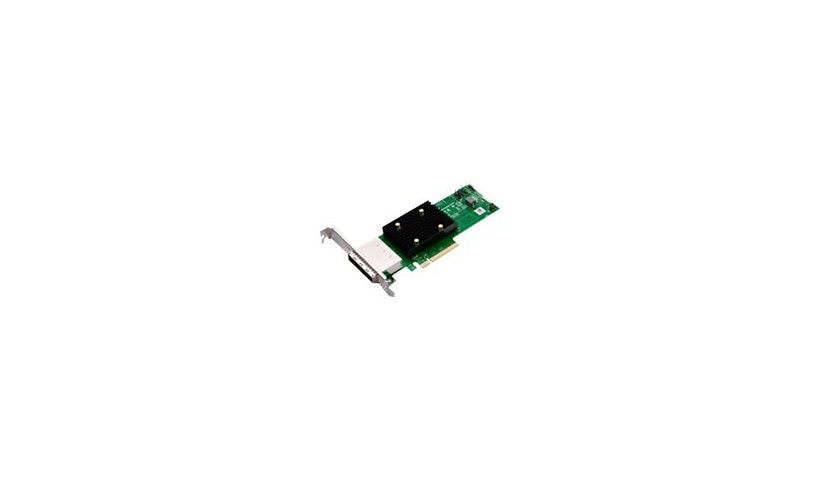

The Broadcom HBA 9500-16e (05-50075-00) is a 16 port tri-mode host bus adapter on a PCIe 4.0 x8 interface, connecting SAS, SATA and NVMe devices through four external Mini SAS HD (SFF-8644) connectors, with support for up to 1,024 devices. It draws about 8.74 W, has a rated MTBF of 5 million hours and includes a low profile bracket. It works with Windows, VMware ESXi and major Linux distributions.
Key Features
- 16 port tri-mode HBA
- SATA, SAS and NVMe
- 4 x external SFF-8644
- Up to 1,024 devices
- PCIe 4.0 x8
- About 8.74 W power draw
Product Information
Brand: Broadcom
Manufacturer: LSI Logic
Product Line: Broadcom
Model: HBA 9500-16e Tri-Mode
Product Type: Storage controller
Packaged Quantity: 1
Color Category: Black, Green, Silver
Network and Communication
Operating System Required: CentOS, Citrix XenServer, Debian Linux, FreeBSD, Linux Fedora, Microsoft Windows, Oracle Enterprise Linux, Red Hat Linux, SuSe Linux, Ubuntu, VMware ESXi, VMware vSphere (ESXi)
Features: Tri-Mode SerDes technology
Connectivity
Channel Quantity: 16
Controller Interface: SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe)
Host Bus Interface: PCIe 4.0 x8
Interface Provided: 4 x SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) - 36 pin 4x Mini SAS HD (SFF-8644) (external)
Power
Power Consumption Operational: 8.74 watt
Memory and Processor
Form Factor (Storage Controller): Plug-in card
Max Storage Devices: 1024
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
MTBF: 5,000,000 Hours
Physical Characteristics
Supported Devices: Hard Drive, Solid State Drive
Dimensions and Weight
Height: 2.7 inch
Depth: 6.6 inch
Included Items
Included Accessories: Low-profile bracket
Certifications and Listing
Compliant Standards: AS/NZS CISPR 22, CNS 13438, EN 60950, EN55022, EN55024, FCC CFR47 Part 15 B, FCC Class B certified, ICES-003 Class B, IEC 60950, RoHS, UL 60950, VCCI V-3, WEEE
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years, Technical support - 3 years
Not sure this host bus adapter fits your system? Send us your server, storage or SAN switch model and the DatorPro team will confirm compatibility before you order.
