Product Information

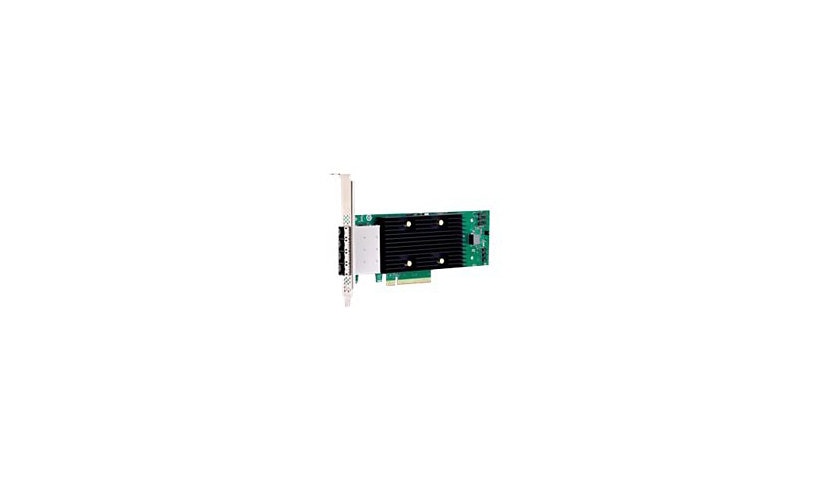

The Broadcom eHBA 9600-16e (05-50118-00) is a low profile, half length 16 port tri-mode host bus adapter on a PCIe 4.0 x8 interface, linking as many as 240 SAS or SATA devices, or 32 NVMe devices, through four SFF-8644 connectors. It offers high bandwidth and IOPS, hardware secure boot and SPDM attestation, draws about 15 W and has a rated MTBF of 5 million hours. A low profile bracket is included. The spec labels the connectors internal, while the 16e model name points to external ports.
Key Features
- 16 port tri-mode HBA
- SATA, SAS and NVMe
- Up to 240 SAS/SATA devices
- 4 x SFF-8644 connectors
- PCIe 4.0 x8
- Secure boot and SPDM
Product Information
Brand: Broadcom
Manufacturer: LSI Logic
Product Line: Broadcom
Model: HBA 9600-16e
Product Type: Storage controller
Packaged Quantity: 1
Color Category: Black, Green
Network and Communication
Operating System Required: CentOS, Citrix XenServer, Debian Linux, FreeBSD, Linux Fedora, Microsoft Windows, Oracle Enterprise Linux, Red Hat Linux, SuSe Linux, Ubuntu, VMware ESXi, VMware vSphere (ESXi)
Connectivity
Channel Quantity: 16
Controller Interface: SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe)
Host Bus Interface: PCIe 4.0 x8
Interface Provided: 4 x SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) - SFF-8644 (internal)
Power
Power Device Type: None
Power Consumption Operational: 15 watt
Memory and Processor
Form Factor (Storage Controller): Plug-in card
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
MTBF: 5,000,000 Hours
Physical Characteristics
Supported Devices: Solid State Drive
Dimensions and Weight
Height: 2.7 inch
Depth: 6.6 inch
Included Items
Included Accessories: Low-profile bracket
Certifications and Listing
Compliant Standards: BSMI, CISPR 32, CISPR 32:2015 Class A, CMIM, CNS 13438, CNS 15663, EMC, EN 55032, EN 55032:2015+AC:2016 Class A, EN 55035, EN 55035:2017/A11:2020, EN55024, FCC Class B certified, ICES, KN32, KN35, RoHS, UL, VCCI-CISPR 32:2016, WEEE
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years, Technical support - 3 years
