Product Information

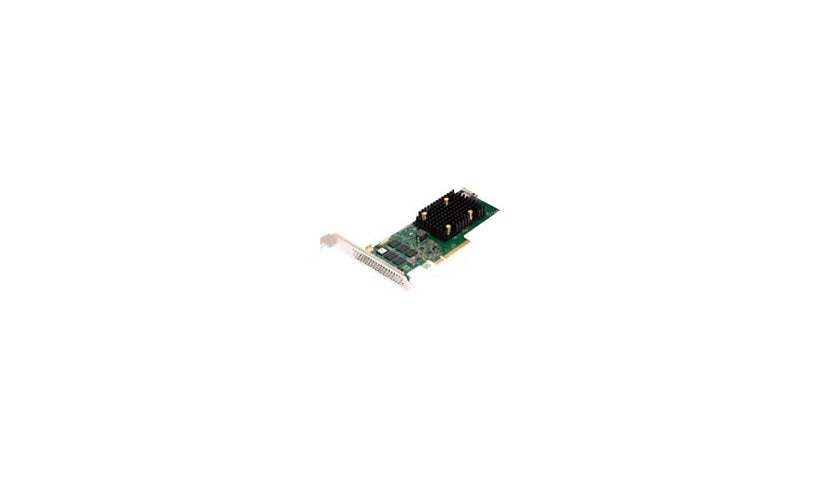

The Broadcom MegaRAID 9560-8i (05-50077-01) is an 8 channel tri-mode RAID controller on a PCIe 4.0 x8 interface, built on the SAS3908 RAID-on-chip with 4 GB of cache. It runs SAS, SATA and NVMe drives (including U.2 backplanes), handles up to 240 devices with RAID levels 0, 1, 5, 6, 10, 50 and 60 plus JBOD, and has one internal SlimSAS (SFF-8654) x8 connector. It draws about 9.64 W with a rated MTBF of 3 million hours, and works with Windows, VMware ESXi and major Linux distributions.
Key Features
- 8 channel tri-mode RAID
- 4 GB cache
- SAS3908 RAID-on-chip
- RAID 0 to 60 and JBOD
- Up to 240 devices
- PCIe 4.0 x8
Product Information
Brand: Broadcom
Manufacturer: LSI Logic
Product Line: Broadcom MegaRAID
Model: 9560-8i
Product Type: Storage controller (RAID)
Packaged Quantity: 1
Color Category: Black, Green, Silver
Network and Communication
Operating System Required: CentOS, Citrix XenServer, Debian Linux, FreeBSD, Linux Fedora, Microsoft Windows, Oracle Enterprise Linux, Red Hat Linux, SuSe Linux, Ubuntu, VMware ESXi, VMware vSphere (ESXi)
Features: Tri-Mode SerDes technology
Connectivity
Channel Quantity: 8
Controller Interface: SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe)
Host Bus Interface: PCIe 4.0 x8
Interface Provided: 1 x SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) - Slim SAS (SFF-8654) (internal)
Power
Power Consumption Operational: 9.64 watt
Memory and Processor
Buffer Size: 4 GB
Form Factor (Storage Controller): Plug-in card
Max Storage Devices: 240
RAID Levels: JBOD, RAID 0, RAID 1, RAID 10, RAID 5, RAID 50, RAID 6, RAID 60
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
MTBF: 3,000,000 Hours
Physical Characteristics
Supported Devices: Disk array (RAID)
Dimensions and Weight
Height: 2.7 inch
Depth: 6.1 inch
Certifications and Listing
Compliant Standards: AS/NZS CISPR 22, CNS 13438, EN 60950, EN55022, EN55024, FCC CFR47 Part 15 B, FCC Class B certified, ICES-003 Class B, IEC 60950, RoHS, UL 60950, VCCI V-3, WEEE
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years, Technical support - 3 years
