Product Information

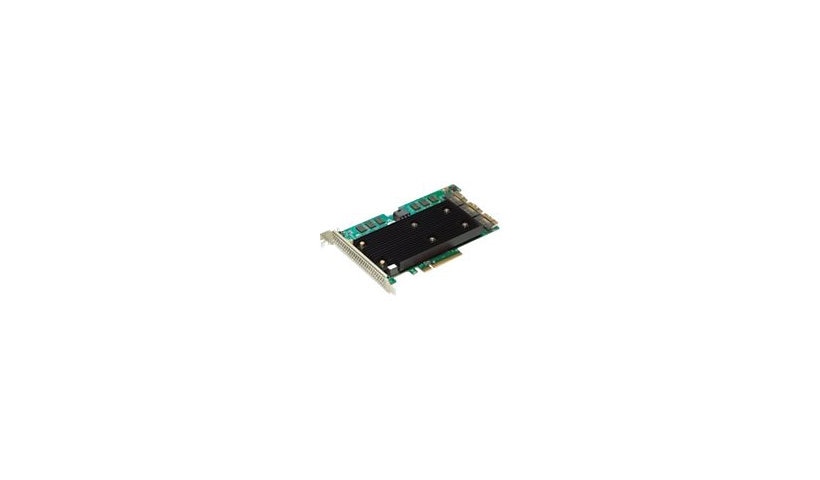

The Broadcom MegaRAID 9670-24i (05-50123-00) is a 24 channel tri-mode RAID controller that connects SATA, SAS and NVMe drives through a PCIe 4.0 x8 interface. It supports RAID 0, 1, 5, 6, 10, 50 and 60 and has three internal SlimSAS (SFF-8654) x8 connectors, drawing about 24 W with a rated MTBF of 3 million hours. A low profile bracket is included, and it works with Windows, VMware ESXi, Red Hat, SUSE, Ubuntu, Debian, CentOS, Oracle Linux, Fedora, FreeBSD and XenServer. The title lists SAS 24Gb/s while the port spec and description give SAS 12Gb/s, so please confirm.
Key Features
- 24 channel tri-mode RAID
- SATA, SAS and NVMe
- RAID 0, 1, 5, 6, 10, 50, 60
- 3 x SlimSAS SFF-8654 internal
- PCIe 4.0 x8
- About 24 W power draw
Product Information
Brand: Broadcom
Manufacturer: BROADCOM
Product Line: Broadcom MegaRAID
Model: 9670-24i
Product Type: Storage controller (RAID)
Packaged Quantity: 1
Color Category: Black, Green
Network and Communication
Operating System Required: CentOS, Citrix XenServer, Debian Linux, FreeBSD, Linux Fedora, Microsoft Windows, Oracle Enterprise Linux, Red Hat Linux, SuSe Linux, Ubuntu, VMware ESXi, VMware vSphere (ESXi)
Connectivity
Channel Quantity: 24
Controller Interface: SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe)
Host Bus Interface: PCIe 4.0 x8
Interface Provided: 3 x SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) - Slim SAS (SFF-8654) (internal)
Power
Power Device Type: None
Power Consumption Operational: 24 watt
Memory and Processor
Form Factor (Storage Controller): Plug-in card
RAID Levels: RAID 0, RAID 1, RAID 10, RAID 5, RAID 50, RAID 6, RAID 60
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
MTBF: 3,000,000 Hours
Physical Characteristics
Supported Devices: Disk array (RAID)
Dimensions and Weight
Height: 4.4 inch
Depth: 6.1 inch
Included Items
Included Accessories: Low-profile bracket
Certifications and Listing
Compliant Standards: BSMI, CISPR 32, CISPR 32:2015 Class A, CMIM, CNS 13438, CNS 15663, EMC, EN 55032, EN 55032:2015+AC:2016 Class A, EN 55035, EN 55035:2017/A11:2020, EN55024, FCC Class B certified, ICES, KN32, KN35, RoHS, UL, VCCI-CISPR 32:2016, WEEE
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years, Technical support - 3 years
Not sure this host bus adapter fits your system? Send us your server, storage or SAN switch model and the DatorPro team will confirm compatibility before you order.
