Product Information

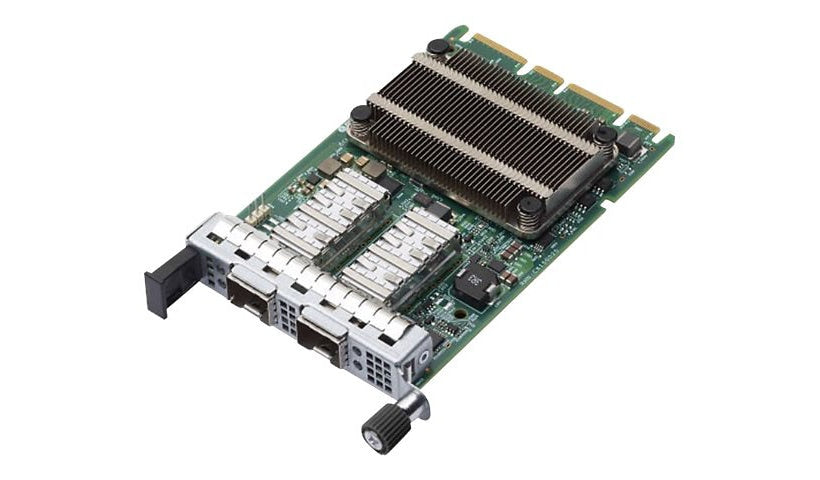

The Broadcom NetXtreme E-Series N210P (BCM957412N4120C) is a dual port 10 Gigabit SFP+ adapter built to the OCP 3.0 small form factor spec, using the BCM57412 controller. Each port runs at 1 or 10 Gb Ethernet and accepts SFP+ optics or direct attach copper cables. It supports DCB, iSCSI boot, LRO and LSO, GENEVE offload, NC-SI and 9 KB jumbo frames, drawing about 7.9 W.
Key Features
- 2 x 1/10GbE SFP+ ports
- Broadcom BCM57412
- OCP 3.0 form factor
- Optics or DAC cables
- DCB and iSCSI boot
- About 7.9 W power draw
Product Information
Brand: Broadcom
Manufacturer: BROADCOM
Product Line: Broadcom NetXtreme E-Series
Model: N210P
Product Type: Network adapter
Packaged Quantity: 1
Color Category: Green, Silver
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, Gigabit Ethernet
Data Transfer Rate: 10 GBps
Capacity: Jumbo frame size: 9 KB
Features: Data Center Bridging (DCB), Data Center Bridging Exchange (DCBX) support, Enhanced transmission selection (ETS), Extended Message-Signaled Interrupts (MSI-X), Function Level Reset (FLR), GENEVE support, Interrupt coalescing, iSCSI boot, Large Receive Offload (LRO), Large Send Offload (LSO), MCTP over SMBus, Message Signaled Interrupts (MSI), NetQueue, Network Controller Sideband Interface (NC-SI), Network Virtualization using Generic Routing Encapsulation (NVGRE), Priority-Based Flow Control (PFC), PXE support, Quantized Congestion Notification (QCN), RDMA over Converged Ethernet (RoCE), Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), SMBus 2.0, TCP Segmentation Offload (TSO), TCP/IP offloading, Transmit Side Scaling (TSS), TruFlow, UDP/IP offloading, UEFI support, Virtual Extensible LAN (VXLAN), VMQueue, vSwitch Acceleration, Wake On LAN (WOL)
Connectivity
PCI Specification Revision: PCIe 3.0
Port Quantity: 2
Interface Provided: 2 x 1Gb Ethernet/10Gb Ethernet - SFP+
Network & Adapter Ports: 1Gb Ethernet / 10Gb Ethernet SFP+
Host Interface: Open Compute Project mezzanine (OCP) 3.0
Power
Power Consumption Operational: 7.9 watt
Memory and Processor
Processor Brand: Broadcom
Processor Number: BCM57412
Processors Installed: 1
Physical Characteristics
Form Factor: Plug-In Card
Status Indicators: Link/activity
Dimensions and Weight
Width: 3 inch
Depth: 4.5 inch
Weight: 3.21 ounce
Certifications and Listing
Compliant Standards: MSA SFF-8402
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
