Product Information

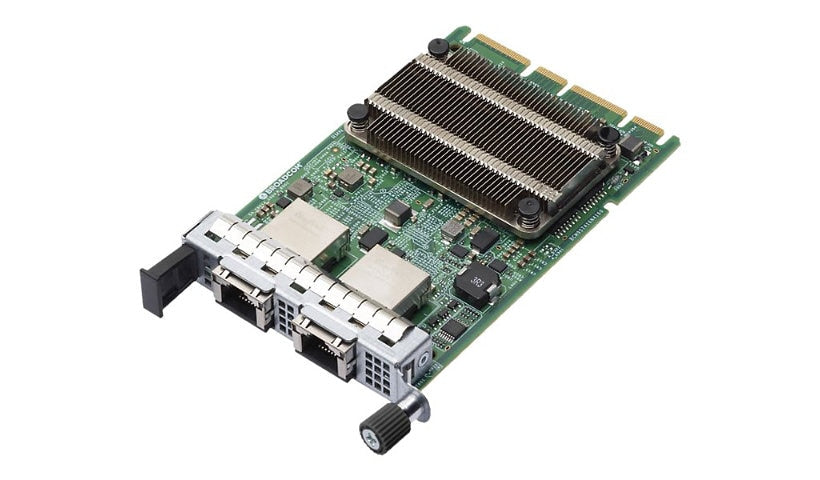

The Broadcom NetXtreme E-Series N210TP (BCM957416N4160C) is a dual port 10GBase-T network adapter built on the BCM57416 controller, with each RJ-45 port running at 1 or 10 Gb Ethernet. It targets enterprise and cloud networking, HPC, telco, machine learning and storage, with DCB, iSCSI boot, LRO and LSO, GRE offload and jumbo frames up to 9,000 bytes, drawing about 14.6 W. The spec lists a PCIe 3.0 x8 interface while the description calls it an OCP 3.0 adapter, so please confirm the form factor your server needs.
Key Features
- 2 x 1/10GBase-T RJ-45 ports
- Broadcom BCM57416
- DCB and iSCSI boot
- Jumbo frames to 9,000 bytes
- About 14.6 W power draw
- Confirm OCP or PCIe
Product Information
Brand: Broadcom
Manufacturer: BROADCOM
Product Line: Broadcom NetXtreme E-Series
Model: N210TP
Product Type: Network adapter
Packaged Quantity: 1
Color Category: Green, Silver
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Myrinet, Gigabit Ethernet
Cable Type: Ethernet 1000Base-T, Ethernet 10GBase-T
Data Transfer Rate: 10 GBps
Features: Auto-uplink (auto MDI/MDI-X), Data Center Bridging (DCB), Data Center Bridging Exchange (DCBX) support, Enhanced transmission selection (ETS), Extended Message-Signaled Interrupts (MSI-X), Function Level Reset (FLR), Generic Routing Encapsulation (GRE), Interrupt coalescing, iSCSI boot, Jumbo Frames support (up to 9000 bytes), Large Receive Offload (LRO), Large Send Offload (LSO), MCTP over SMBus, Message Signaled Interrupts (MSI), Mware NetQueue and Microsoft Virtual Machine Queue (VMQ), NetQueue, Network Controller Sideband Interface (NC-SI), Network Virtualization using Generic Routing Encapsulation (NVGRE), Open Compute Project (OCP) 3.0 support, Priority-Based Flow Control (PFC), PXE support, Quantized Congestion Notification (QCN), RDMA over Converged Ethernet (RoCE), Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), SMBus 2.0, TCP Segmentation Offload (TSO), TCP/IP checksum offload, Transmit Side Scaling (TSS), TruFlow, Tunnel-aware stateless offloads, UDP/IP checksum offload, UEFI support, Virtual Extensible LAN (VXLAN), vSwitch Acceleration, Wake On LAN (WOL)
Connectivity
PCI Specification Revision: PCI 3.0
Port Quantity: 2
Interface Provided: 2 x 1/10GBase-T - RJ-45
Network & Adapter Ports: Gigabit Ethernet / 10Gb Ethernet
Host Interface: PCI Express 3.0 x8
Power
Power Consumption Operational: 14.6 watt
Memory and Processor
Processor Brand: Broadcom
Processor Number: BCM57416
Physical Characteristics
Status Indicators: Link/activity
Certifications and Listing
Compliant Standards #2: IEEE 802.3ab, IEEE 802.3an, OCP 3.0
Compliant Standards: EMC
Compliant Standards: IEEE 802.3ab, IEEE 802.3an, OCP 3.0
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
