Product Information

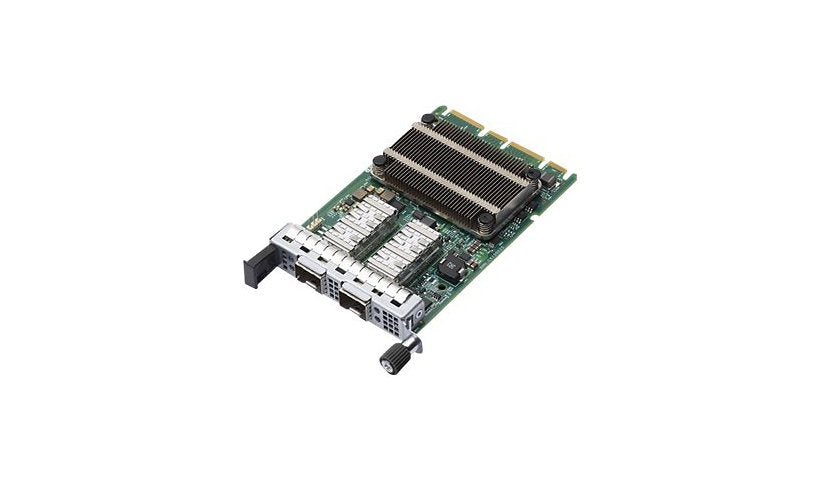

The Broadcom NetXtreme E-Series N225P (BCM957414N4140C) is a dual port SFP28 adapter in the OCP 3.0 form factor, built on the BCM57414 controller, with each port running at 10 or 25 Gb Ethernet. It supports DCB, iSCSI boot, LRO and LSO, GRE and GENEVE offloads and jumbo frames up to 9,000 bytes for TCP/IP and RoCE traffic.
Key Features
- 2 x 10/25GbE SFP28 ports
- Broadcom BCM57414
- OCP 3.0 form factor
- DCB and iSCSI boot
- GENEVE offload
- 9,000 byte jumbo frames
Product Information
Brand: Broadcom
Manufacturer: BROADCOM
Product Line: Broadcom NetXtreme E-Series
Model: N225P
Product Type: Network adapter
Packaged Quantity: 1
Color Category: Green, Silver
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 25 Gigabit Ethernet
Features: Data Center Bridging (DCB), Data Center Bridging Exchange (DCBX) support, Enhanced transmission selection (ETS), Extended Message-Signaled Interrupts (MSI-X), Function Level Reset (FLR), Generic Routing Encapsulation (GRE), GENEVE support, Interrupt coalescing, IPv4 support, IPv6 support, iSCSI boot, Jumbo Frames support (up to 9000 bytes), Large Receive Offload (LRO), Large Send Offload (LSO), Low Latency RDMA over Converged Ethernet (RoCE), MCTP over SMBus, Message Signaled Interrupts (MSI), NetQueue, Network Controller Sideband Interface (NC-SI), Network Virtualization using Generic Routing Encapsulation (NVGRE), Open Compute Project (OCP) 3.0 support, Priority-Based Flow Control (PFC), PXE support, Quantized Congestion Notification (QCN), Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), SMBus 2.0, TCP Segmentation Offload (TSO), TruFlow, Tunnel-aware stateless offloads, UEFI support, Virtual Extensible LAN (VXLAN), Virtual machine multiqueues (VMMQ), vSwitch Acceleration, Wake On LAN (WOL)
Connectivity
Port Quantity: 2
Interface Provided: 2 x 10Gb Ethernet/25Gb Ethernet - SFP28
Network & Adapter Ports: 10Gb Ethernet/25Gb Ethernet
Host Interface: Open Compute Project mezzanine (OCP) 3.0
Memory and Processor
Processor Brand: Broadcom
Processor Number: BCM57414
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Physical Characteristics
Form Factor: Plug-In Card
Dimensions and Weight
Weight: 3.21 ounce
Certifications and Listing
Compliant Standards #2: IEEE 802.3ap, IEEE 802.3az
Compliant Standards: EMC
Compliant Standards: IEEE 802.3ap, IEEE 802.3az
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Not sure this adapter or module fits your system? Send us your server, switch or storage model and the DatorPro team will confirm compatibility before you order.
