Product Information

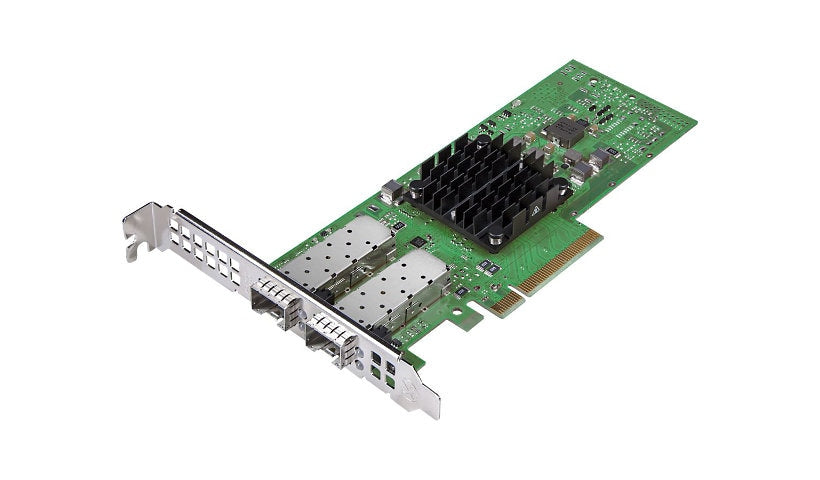

The Broadcom NetXtreme E-Series P210P (BCM957412A4120AC) is a dual port 10 Gigabit SFP+ network card on a PCIe 3.0 x8 interface, built on the BCM57412 controller. It targets enterprise and cloud networking, HPC, telco, machine learning and storage, with NPAR, iSCSI boot, LRO and LSO, NVGRE and GRE offloads and enhanced packet processing. It works with Windows, Windows Server, Hyper-V, Red Hat, SUSE, Ubuntu, Debian, CentOS, Oracle Linux, Solaris, FreeBSD and VMware.
Key Features
- 2 x 10GbE SFP+ ports
- Broadcom BCM57412
- PCIe 3.0 x8
- NPAR and iSCSI boot
- NVGRE and GRE offload
- Wide OS support
Product Information
Brand: Broadcom
Manufacturer: BROADCOM
Product Line: Broadcom
Model: P210P
Product Type: Network adapter
Packaged Quantity: 1
Color Category: Green
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet
Operating System Required: CentOS, Debian Linux, FreeBSD, Linux, Microsoft Windows, Microsoft Windows Hyper-V Server, Microsoft Windows Server, Oracle Linux, Oracle Solaris, Red Hat Enterprise Linux, SunSoft Solaris, SUSE Linux Enterprise Server, Ubuntu, VMware ESX, VMware vShpere
Features: Checksum offload support, Enhanced Packet Processing v2, Extended Message-Signaled Interrupts (MSI-X), Function Level Reset (FLR), Generic Routing Encapsulation (GRE), Interrupt coalescing, iSCSI boot, Large Receive Offload (LRO), Large Send Offload (LSO), MCTP over SMBus, Message Signaled Interrupts (MSI), Network Virtualization using Generic Routing Encapsulation (NVGRE), NIC Partitioning (NPAR), RDMA over Converged Ethernet (RoCE), Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), TCP Segmentation Offload (TSO), TCP/IP offloading, Transmit Side Scaling (TSS), TruFlow, TruManage, Tunnel offload, UDP/IP offloading, Virtual Extensible LAN (VXLAN), Virtual machine multiqueues (VMMQ), VLAN support
Connectivity
PCI Specification Revision: PCIe 3.0
Port Quantity: 2
Interface Provided: 2 x 10Gb Ethernet - SFP+
Network & Adapter Ports: 10 Gigabit SFP+
Host Interface: PCI Express 3.0 x8
Memory and Processor
Processor Brand: Broadcom
Processor Number: BCM57412
Processors Installed: 1
Physical Characteristics
Form Factor: Plug-In Card
Status Indicators: Link/activity
Certifications and Listing
Compliant Standards: ACA, AS/NZS CISPR22:2009+A1:2010, BSMI CNS 15663, CB, CNS 13438, DOC, EN 55024:2010, EN 55032:2012, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-4-2, EN 62368-1, FCC CFR47 Part 15 B, IC, ICES-003 Class B, IEC 62368-1, KCC KN22 Class B, KN24, MSA SFF-8402, RCM, RoHS CNS 15663, UL, UL 1977, UL 94, VCCI V-3
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
