Product Information

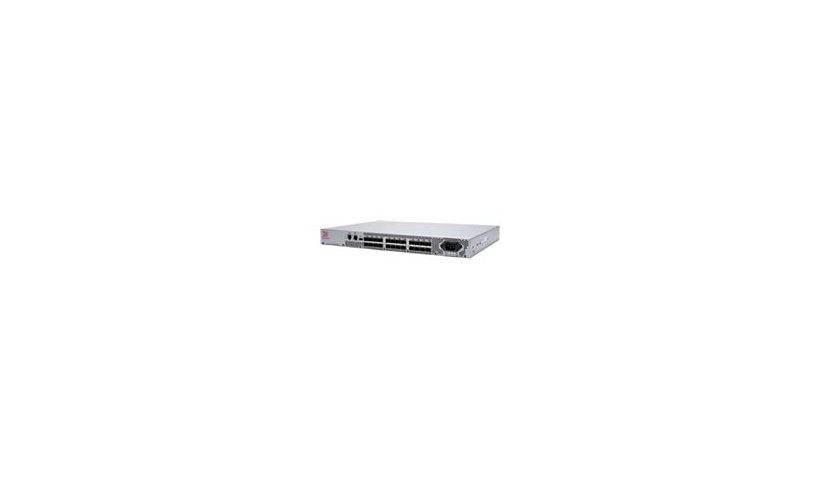

Brocade's G710 is a Fibre Channel SAN switch, not an Ethernet switch, with eight active 32Gb FC SFP+ ports. It offers 1.536 Tbps of aggregate bandwidth and about 460 ns of fabric latency, with Fabric Vision, one power supply and back to front airflow.
Key Features
- 8 x 32Gb Fibre Channel SFP+ ports
- 1.536 Tbps aggregate bandwidth
- 460 ns fabric latency
- Brocade Fabric Vision
- 1 power supply installed
- Back to front airflow
Product Information
Brand: Brocade
Manufacturer: BROADCOM
Product Line: Brocade
Model: G710
Product Type: Switch
Subcategory: Fibre Channel and SAN
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Switching Type: Fibre Channel
Manageable: Yes
Remote Management: CLI, HTTP, HTTPS, IPv6, LDAP, SFTP, SNMP 1, SNMP 3, SSH, Syslog
Authentication Method: DH-CHAP, FCAP, LDAP, RADIUS, Secure Shell v.2 (SSH2), TACACS+
Encryption: SSL
Performance: Aggregate bandwidth: 1.536 Tbps, Fabric latency: 460 ns
Capacity: Frame buffers: 2000, Maximum frame size: 2112 byte
Stackable: Stackable
Operating System Required: Fabric OS
Features: Active Support Connectivity (ASC), AI Traffic Optimizer, Brocade Support Link (BSL), Built-in flow generator, Class of Service (CoS), Dynamic path selection (DPS), F-port trunking and channelling, Fabric Performance Impact (FPI) monitoring, Fabric Shortest Path First (FSPF), Fabric-Device Management Interface (FDMI), Flow mirroring, Flow Vision, Forward Error Correction (FEC), IP address filtering, ISL Trunking, Monitoring and Alerting Policy Suite (MAPS), N-Port ID Virtualization (NPIV) technology, Port Binding, Quality of Service (QoS), Registered State Change Notification (RSCN) support, Role-Based Access Control (RBAC), Rolling Reboot Detection (RRD), Secure Boot, Secure Copy (SCP), Slow Drain Device Quarantine (SDDQ), SNTP v3 support, Switch Binding, Trusted Switch, Virtual Machine Identity (VMID) support
Max Units In A Stack: 239
Software Type: Brocade Fabric Vision
Connectivity
Ports: 8
Port Quantity: 8
Port Type: 32Gb Fibre Channel SFP+
Interface Provided: 1 x 1000Base-T RJ-45 management, 1 x serial (console) RJ-45 management, 1 x USB Type A, 8 x 32Gb Fibre Channel SFP+
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 47 - 63 hertz
Power Supplies Installed: 1
Power Supplies Supported: 1
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 85% (non-condensing)
Min Storage Temperature: -13 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Back to front airflow
Dimensions and Weight
Height: 1.7 inch
Width: 16.9 inch
Depth: 12.1 inch
Weight: 9.35 lbs
Certifications and Listing
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
