Product Information

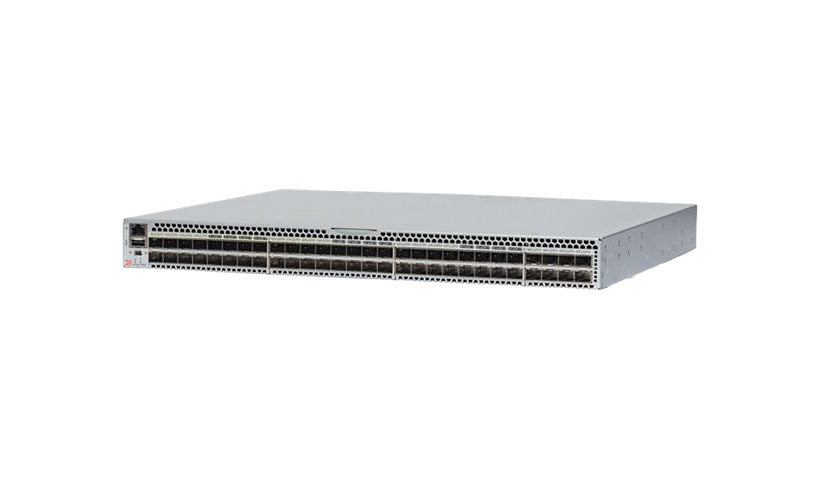

Brocade's G820 (BR-G820-24-64G-R) is a 24-port 64Gb Fibre Channel switch for storage networks, with 7.168 Tbps of aggregate bandwidth and 580 ns fabric latency. It has two redundant power supplies and bidirectional airflow. This is a Fibre Channel SAN switch, not an Ethernet switch.
Key Features
- 24 x 64Gb Fibre Channel SFP+ ports
- 7.168 Tbps aggregate bandwidth
- 580 ns fabric latency
- Brocade SANnav management
- 2 redundant power supplies installed
- Bidirectional airflow
Product Information
Brand: Brocade
Manufacturer: BROCADE
Product Line: Brocade
Model: G820
Product Type: Switch
Subcategory: Fibre Channel and SAN
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Switching Type: Fibre Channel
Manageable: Yes
Remote Management: CLI, HTTP, HTTPS, LDAP, NTP, RESTful API, SCP, SFTP, SNMP 1, SNMP 3, SSH, SSH-2, TLS 1.3
Authentication Method: DH-CHAP, FCAP, LDAP, Secure Shell (SSH), Secure Shell v.2 (SSH2)
Encryption: 256-bit AES-GCM, SSL
Performance: Aggregate bandwidth: 7.168 Tbps, Fabric latency: 580 ns
Capacity: Frame buffers: 40000, Maximum frame size: 2112 byte, Nodes: 4000
Stackable: Stackable
Features: Active Support Connectivity (ASC), Adaptive Traffic Optimizer, Advanced Zoning, Brocade Support Link (BSL), Buffer-to-buffer credit recovery (BB-CR), Built-in flow generator, Cable Diagnostics Function, DWDM, Dynamic path selection (DPS), Extended Fabrics support, Fabric Performance Impact (FPI) monitoring, Fabric Shortest Path First (FSPF), Fabric Vision technology, Fabric-Device Management Interface (FDMI), FC Ping, Firmware upgradable, Flow mirroring, Flow Vision, Forward Error Correction (FEC), Frame-based Trunking, Full duplex capability, IP address filtering, ISL support, ISL Trunking, LDAP support, Management Information Base (MIB), Monitoring and Alerting Policy Suite (MAPS), N-Port ID Virtualization (NPIV) technology, Post-quantum cryptography (PQC) support, Power-on self-test (POST), Quality of Service (QoS), Registered State Change Notification (RSCN) support, Role based access control, Rolling Reboot Detection (RRD), SAN Fabric Intelligence (SAN FI), Secure Boot, Secure Copy (SCP), Slow Drain Device Quarantine (SDDQ), Syslog support, Traceroute, Virtual Fabric mode, Virtual Machine Identity (VMID) support
Max Units In A Stack: 239
Software Type: Brocade SANnav Global View, Brocade SANnav Management Portal
Connectivity
Ports: 24
Port Quantity: 24
Port Type: 64Gb Fibre Channel SFP+
Interface Provided: 1 x 1000Base-T RJ-45 management, 1 x serial (console) mini-USB management, 24 x 64Gb Fibre Channel SFP+
Power
Device Type: Internal power supply
Required Voltage: AC 90-264 volt
Frequency: 47 - 63 hertz
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply Supported: 1+1
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
80 PLUS Certification: 80 PLUS Platinum
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 85% (non-condensing)
Min Storage Temperature: -13 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Bidirectional airflow
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 15.6 inch
Weight: 18.5 lbs
Certifications and Listing
Compliant Standards: ROHS Directive 2011/65/EU, ROHS Directive 2015/863/EU, USGv6
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
