Product Information

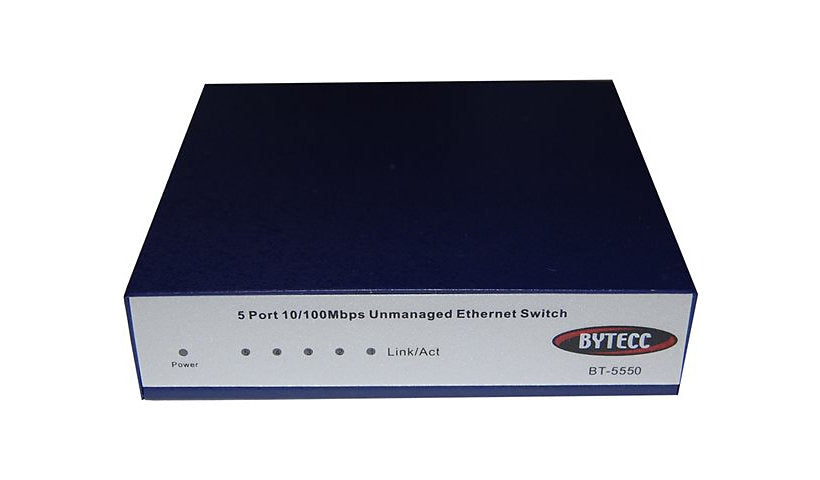

The Bytecc BT-5550 is a tiny unmanaged switch with five 10/100 ports that draws only about 0.9 W. It supports auto MDI/MDI-X and flow control and needs no setup.
Key Features
- 5 x 10/100 RJ-45 ports
- Unmanaged, plug and play
- About 0.9 W power use
- Auto MDI/MDI-X, flow control
- Mini desktop design
Product Information
Brand: Bytecc
Manufacturer: Bytecc
Product Line: Bytecc
Model: BT-5550 Mini
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black, Gray
Network and Communication
Switching Type: Fast Ethernet
Manageable: No
MAC Address Table Size: 2000 entries
Features: Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Flow control, Full duplex mode, Half duplex mode, MAC address learning, Store and forward
Connectivity
Ports: 5
Port Quantity: 5
Port Type: 10/100
Interface Provided: 1 x 100Base-TX RJ-45 uplink, 5 x 100Base-TX RJ-45 downlink
Power
Device Type: External power adapter
Power Consumption Operational: 0.9 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90%
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Status Indicators: Link/activity, Power
Certifications and Listing
Compliant Standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
