Product Information

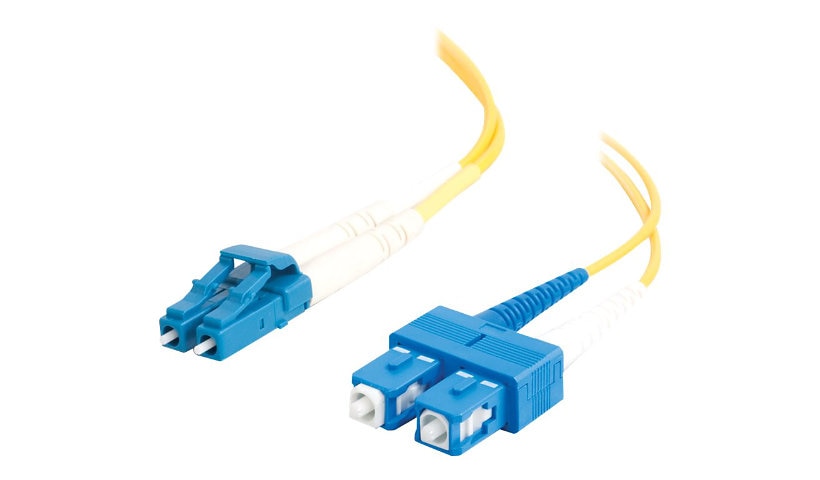

Cables To Go 9/125 single mode patch cords give you strong performance without a premium price. This 2 meter (6.6 ft) version has two LC connectors on one end and two SC connectors on the other. It supports higher bandwidth and longer distances than multimode, works well in Gigabit Ethernet networks, and leaves headroom for faster speeds later on.
The PVC jacket is OFNR rated and the cable is built to handle repeated flexing, impact and crush loads during installation.
General
Brand: C2G
Product line: C2G
Part number: 26260
Cable type: Patch cable
Package quantity: 1
Cable and Fiber
Length: 2 m (6.6 ft)
Fiber: OS2 single mode, 9/125 µm
Cable mode: Duplex
Attenuation: 1.0 dB/km at 1310 nm, 0.75 dB/km at 1550 nm
Jacket: PVC (OFNR rated), 3.0 mm OD
Buffer: PVC, 900 µm OD
Color: Yellow
Connectors
Connectors: 2x LC (male) to 2x SC (male)
Physical and Environmental
Maximum tensile load: 100 N/cm
Minimum bend radius: 5 cm loaded, 3 cm unloaded
Crush resistance: 750 N/cm
Impact resistance: 1000 cycles
Flex resistance: 5000 cycles
