Product Information

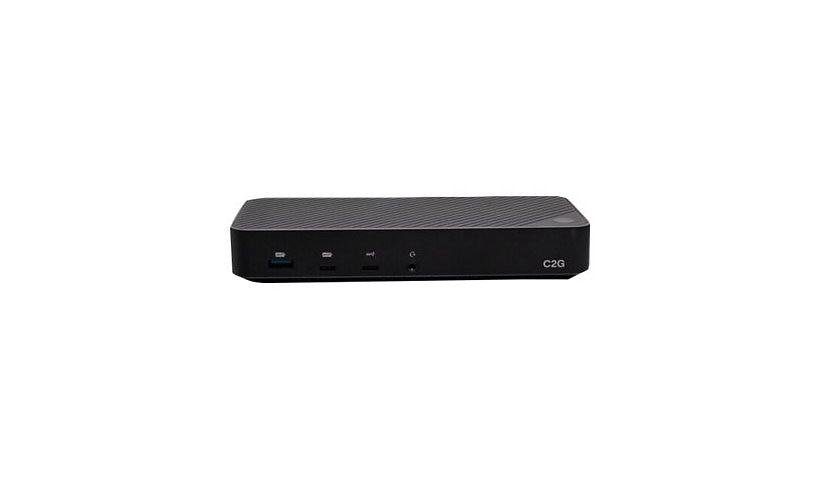

This USB-C hybrid docking station with DisplayLink and DP Alt Mode turns a USB-C laptop into a complete desktop setup through a single connection, adding video outputs, peripherals and fast data transfer while keeping the laptop charged. It supports one, two or three 4K displays: a single display at 4K 60Hz or three at 4K 30Hz. Front USB-A and USB-C 3.2 Gen 2 ports support BC 1.2 charging and 10Gbps transfers, two rear USB-A Gen 1 ports run at 5Gbps, and a Gigabit Ethernet port provides wired networking. An SD card reader and headset jack are also included. The included 130W power supply delivers up to 100W to the laptop. It works with Windows, macOS (including M1) and Chrome OS. Note: the latest DisplayLink drivers are required for the first and second displays, and the HDMI port labeled DP Alt Mode needs a laptop that supports DP Alt Mode.
Key Features
- USB-C hybrid triple-display dock
- 1x 4K 60Hz or 3x 4K 30Hz
- 2x HDMI, 2x DisplayPort, Gigabit Ethernet
- USB-A/USB-C 3.2 ports, SD card reader
- 130W power supply, 100W laptop charging
Product Information
Brand: C2G
Manufacturer: Cables To Go
Product Line: C2G
Model: C2G54538
Product Type: Docking Station
Technical Information
Features: 100W power delivery, Security lock slot (cable lock sold separately)
Power Provided: 130 watt
Dimensions and Weight
Width: 7.5 inch
Height: 12.5 inch
Depth: 3.3 inch
Color: Black
Included Item
Packaged Quantity: 1
Additional Information
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Host Interface: USB-C / Thunderbolt 3
Interface Provided: 1 x headphone/microphone combo jack, 1 x network - 1000Base-T - RJ-45, 1 x USB-A 3.2 Gen2, 2 x display / video - DisplayPort - 20 pin DisplayPort, 2 x display / video - HDMI - 19 pin HDMI Type A, 2 x USB-A 3.2 Gen1, 3 x USB-C - 24 pin USB-C
Video Interfaces: DP, HDMI
Power Device Type: Power adapter
Required Voltage: AC 100-240 volt
Input Device Type: SD card reader
Max Operating Temperature: 158 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Max Resolution Details: 3840 x 2160 - 30 Hz (DisplayPort only), 3840 x 2160 - 60 Hz
Security Slot Type: Kensington security slot
Included Accessories: USB-C to USB-A cable (0.5m), USB-C to USB-C cable (0.5m)
Certifications and Listing
Compliant Standards: FCC, REACH, RoHS
