Product Information

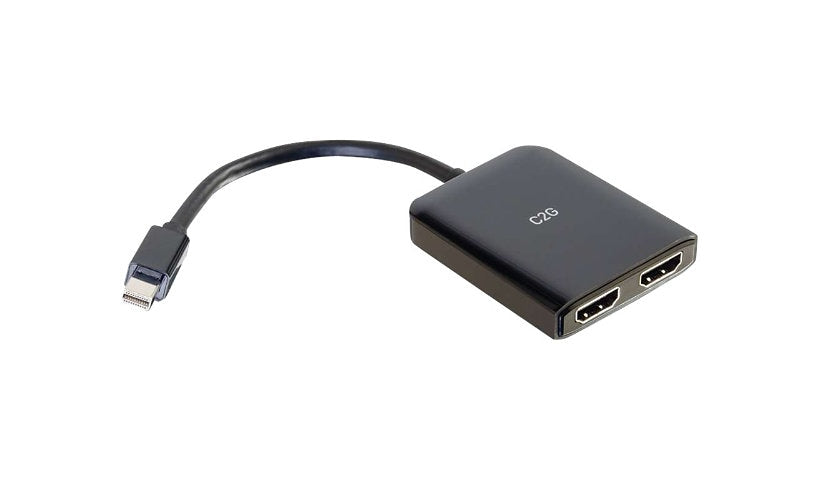

C2G's 54292 connects a Mini DisplayPort device, such as Microsoft Surface models, to two HDMI displays to mirror, extend or span one image across both. It supports 4K at 60 Hz on one display or 4K at 30 Hz on two, with 7.1 audio. It needs 5V/2A; extra power can be supplied through its Micro-USB port.
Key Features:
- Mini DisplayPort male to 2x HDMI female MST hub
- 1 display: 4K 60 Hz; 2 displays: 4K 30 Hz
- 7.1 channel audio; 5.4 Gbps max bandwidth
- Micro-USB port for additional power
- Requires DP 1.2 with MST
Specifications:
- Brand: C2G
- Manufacturer Part Number: 54292
- Standards & Compliance: DisplayPort 1.2
- Feature Set: Supports MultiStream (MST)
- Form Factor (Hubs & Switches): Desktop
- Ports: 2
- Product Category: Video/audio splitter
- Subcategory: Peripheral sharing and hubs
- Switching Type: HDMI / DisplayPort
- Interface Provided: 1 x micro-USB (power only) Type B, 1 x mini-DisplayPort input, 2 x HDMI output
- Port Quantity: 2
- Port Type: HDMI
- KVP Max Resolution: 3840 x 2160
- KVM V-Sync Rate At Max Resolution: 60 Hz
- Warranty: Limited lifetime warranty
