Product Information

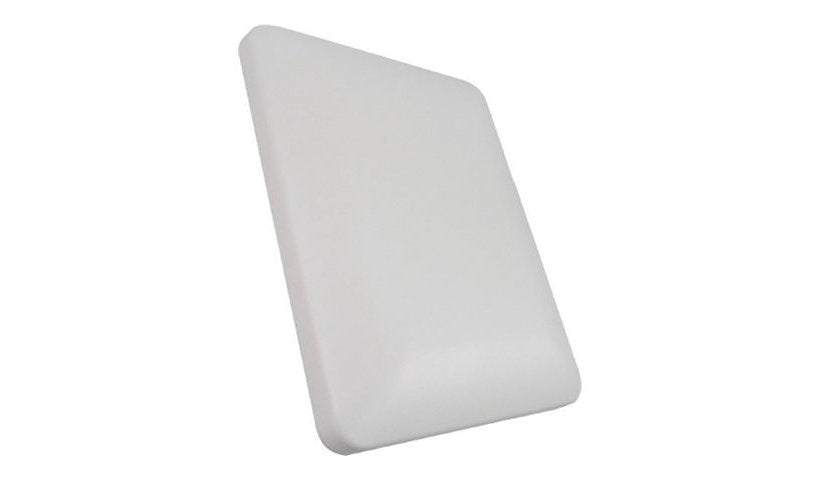

The Cambium ANT-D35-4X4-01 is a 4x4 directional antenna for the 5 and 6 GHz bands (5150 to 7125 MHz) built for the Cambium XE3-4TN outdoor access point, with about a 35° beam. It has four N female connectors, is rated -40 to 185 °F and includes mounting brackets for wall or pole. The title says 13 dBi while the spec says 14 dBi, so please confirm.
Key Features
- 5 / 6 GHz, 4x4 directional
- For Cambium XE3-4TN
- About 35° beam
- 13 or 14 dBi (confirm)
- 4 x N female
- Wall / pole brackets included
Product Information
Brand: Cambium Networks
Manufacturer: Xirrus
Product Line: Cambium Networks
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Color Category: White
Network and Communication
Antenna Gain: 14 dBi
Antenna Placement: Pole mount, Wall-mountable
Frequency Range: 5150 - 7125 MHz
Signaling Type: Wi-Fi
Directivity: Directional
Features: 4x4 antenna chains, Max power 5 Watts, Slant +/- 45° polarization
Connectivity
Connector Provided: 4 x N connector female
Technical Information
Impedance: 50 ohm
Voltage Standing Wave Ratio (VSWR): 2.0:1
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 185 degree Fahrenheit
Dimensions and Weight
Height: 10.2 inch
Width: 9 inch
Depth: 2 inch
Weight: 2.77 lbs
Included Items
Package Content: Mount hardware
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
