Product Information

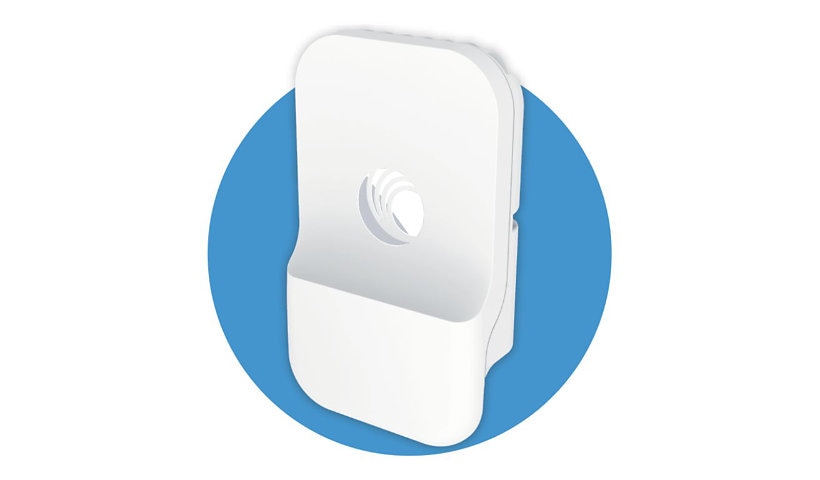

The Cambium Bridge-in-a-Box 1Gb is an outdoor 60 GHz 802.11ay wireless bridge with a 22.5 dBi antenna, delivering up to 1 Gbps over about 492 ft. It has a Gigabit PoE port, 128-bit AES encryption, IP66 and IP67 sealing and a -40 to 140 °F range, and draws about 10 W. This is a bridge radio, not a standalone antenna.
Key Features
- 60 GHz 802.11ay bridge
- Up to 1 Gbps
- About 492 ft range
- 22.5 dBi integrated antenna
- Gigabit RJ-45, PoE
- IP66 / IP67, -40 to 140 °F
Product Information
Brand: Cambium Networks
Manufacturer: Xirrus
Product Line: Cambium Networks
Model: Bridge-in-a-Box 1Gb
Product Type: Wireless bridge
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11ay
Network Standard: IPv4, IPv6
Remote Management: HTTP, HTTPS, SNMP 2c, SNMP 3
Encryption: 128-bit AES
Data Transfer Rate: 1 GBps
Line Coding Format: 16 QAM, BPSK
Wireless LAN: 802.11ay
Antenna Gain Level: 22.5 DBi
Max Range Open Space: 492 ft
Frequency Band: 60 GHZ
Features: 200 km/h wind survival, 2KV Surge protection, ARQ support, cnMaestro support, Layer 3 routing, Open/R support
Connectivity
Interface Provided: 1 x 1000Base-T (PoE) - RJ-45
Power Over Ethernet (PoE): PoE
Power
Power Consumption Operational: 10 watt
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Ruggedized Design: Outdoor
Physical Characteristics
Form Factor: External
Dimensions and Weight
Height: 6.7 inch
Width: 3.9 inch
Depth: 2.1 inch
Weight: 16.22 ounce
Included Items
Included Accessories: Power cord
Certifications and Listing
Compliant Standards: IEEE 802.1ad, IEEE 802.1p, IEEE 802.1Q
Compliant Standards: EN 302 567 V2.1.1, EN 303 722 V0.0.4, FCC, ICC, IP66, IP67
