Product Information

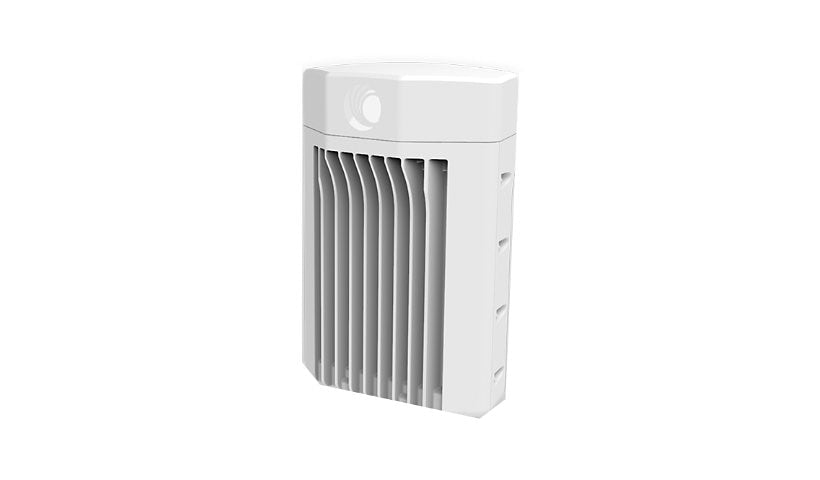

The Cambium cnWave V5000 is a 60 GHz distribution node for 802.11ay Terragraph based fixed wireless networks. Its dual sector design covers 280° with 22.5 dBi gain, it is PoE powered, sealed to IP66 and IP67 and rated -40 to 140 °F. This is a 60 GHz fixed wireless node, not a Wi-Fi access point.
Key Features
- 60 GHz 802.11ay (Terragraph)
- Dual sector, 280° coverage
- 22.5 dBi antenna gain
- PoE powered
- IP66 / IP67, -40 to 140 °F
Product Information
Brand: Cambium Networks
Manufacturer: Xirrus
Product Line: Cambium Networks cnWave
Model: V5000
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Color Category: White
Network and Communication
Antenna Gain: 22.5 dBi
Antenna Placement: Outdoor
Antenna Compatibility: 802.3at, TDMA
Frequency Range: 60 GHz
Signaling Type: Radio
Features: 128-bit AES security, HTTP support, PoE powered, SNMP support, Terragraph certified
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Dimensions and Weight
Height: 11 inch
Width: 7.3 inch
Depth: 4.1 inch
Certifications and Listing
Compliant Standards: IP66, IP67
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
