Product Information

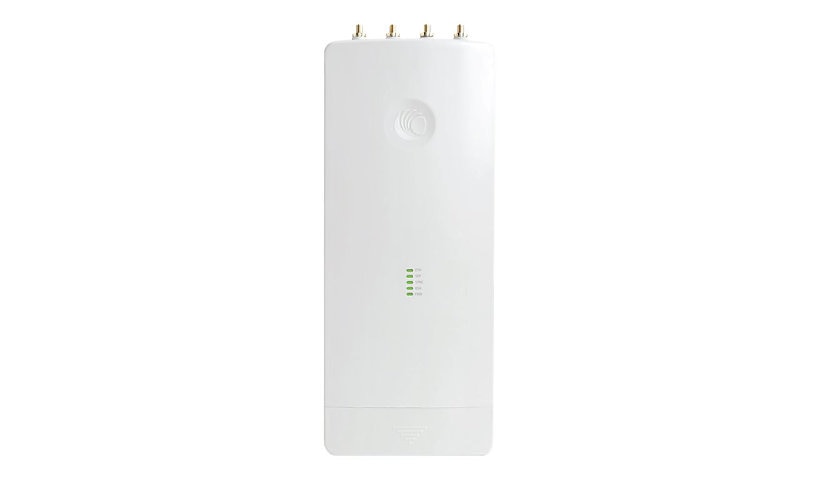

Cambium Networks' ePMP 3000 (C058910A102A) is a 5 GHz 802.11ac Wave 2 point-to-multipoint access point for wireless ISPs, with 4x4 MU-MIMO and up to 1.2 Gbps peak throughput. It has a Gigabit PoE+ port, an SFP port and RP-SMA antenna connectors, is IP55 rated and comes with a power injector.
Key Features
- 5 GHz PtMP base station
- 4x4 MU-MIMO, up to 1.2 Gbps
- Gigabit PoE+ RJ-45 + SFP
- 7 x RP-SMA antenna connectors
- IP55, -22 to 131 °F
- Power injector included
Product Information
Brand: Cambium Networks
Manufacturer: Xirrus
Product Line: Cambium Networks ePMP
Model: 3000
Product Type: Wireless bridge
Device Type: Power injector
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network Standard: ICMP/IP, IPv4, IPv6, TCP/IP, UDP/IP
Remote Management: HTTPS, SNMP 2c, SSH
Encryption: 128-bit AES-CCMP
Data Transfer Rate: 1.2 GBps
Line Coding Format: 256 QAM, BPSK
Capacity: Frequency range: 4.91 - 5.97 GHz, Subscribers per sector: 120
Wireless LAN: 802.11a/b/g/n/ac Wave 2
Network Band: 5 GHz
Spread Spectrum Method: OFDM
Network Device: Channel width: 20 / 40 / 80 MHz
Antenna Form Factor: External detachable
Features: 4x4 MU-MIMO technology, ARQ support, Auto-negotiation, Class of Service (CoS), DSCP based QoS, Dynamic Frequency Selection (DFS), Dynamic Spectrum Optimization (DSO), IGMP snooping, Quality of Service (QoS), Spanning Tree Protocol (STP) support, Surge protection, VLAN support
Connectivity
Interface Provided: 1 x 1000Base-T (PoE+) - RJ-45, 1 x auxiliary - SFP, 7 x antenna - RP-SMA
Power Over Ethernet (PoE): PoE+
Memory and Processor
Optical Drive Type: None
Technical Information
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Physical Characteristics
Form Factor: Pole mountable
Built-in Devices: GPS
Dimensions and Weight
Height: 8.7 inch
Width: 4.9 inch
Depth: 1.8 inch
Weight: 24.69 ounce
Included Items
Included Accessories: Power cable (US)
Certifications and Listing
Compliant Standards: FCC-ID, IP55
Compliant Standards: IEEE 802.11ac Wave 2, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3at
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
Service Activation: No
