Product Information

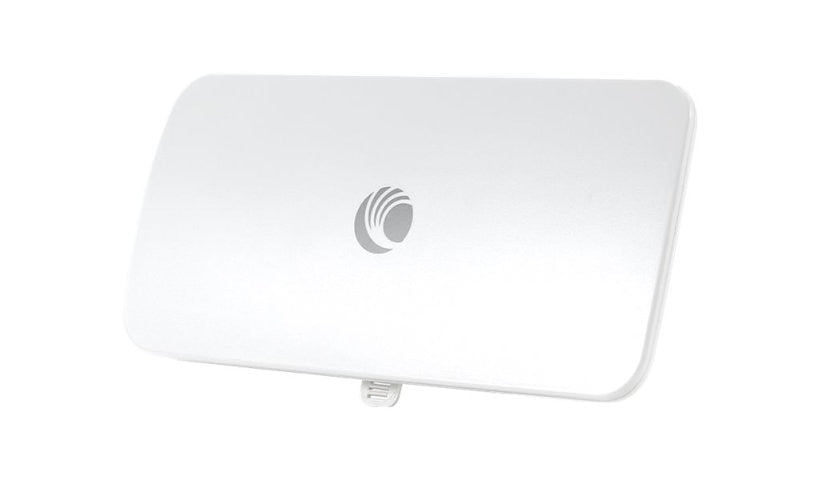

The Cambium ePMP Force 300-16 is a compact 5 GHz subscriber or point to point radio with a 16 dBi antenna, peak throughput over 500 Mbps and an always on spectrum analyzer. It has a Gigabit PoE port, IP55 sealing and a -22 to 140 °F range, and includes a PoE injector and power cord. This is a radio, not a standalone antenna.
Key Features
- 5 GHz subscriber / PtP radio
- 16 dBi antenna
- Over 500 Mbps peak
- Gigabit PoE port
- IP55, -22 to 140 °F
- PoE injector included
Product Information
Brand: Cambium Networks
Manufacturer: Xirrus
Product Line: Cambium Networks ePMP
Model: Force 300-16
Product Type: Wireless bridge
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network Standard: ICMP/IP, IPv4, IPv6, TCP/IP, UDP/IP
Remote Management: HTTPS, SNMP 2c, SSH
Encryption: 128-bit AES-CCMP
Data Transfer Rate: 600 MBps
Line Coding Format: 256 QAM, BPSK, OFDM
Wireless LAN: 802.11a/b/g/n/ac Wave 2
Spread Spectrum Method: OFDM
Network Device: Channel spacing: 5 MHz, Channel width: 20 / 40 / 80 MHz, Frequency range: 4910 - 5970 MHz
Antenna Gain Level: 16 DBi
Frequency Band: 5 GHZ
VoIP: Yes
Features: 128-bit encryption, 2x2 MIMO technology, Auto Repeat reQuest (ARQ), Bi-directional communication, Class of Service (CoS), DiffServ Code Point (DSCP) support, IGMP snooping, IP address filtering, IPv4 support, MAC (Media Access Control) Layer, MAC address filtering, Manageable, Orthogonal Frequency Division Multiplexing (OFDM), Pole mountable, Quality of Service (QoS), Surge protection, VLAN support, VoIP support, Wall mountable
Connectivity
Interface Provided: 1 x 1000Base-T (PoE) - RJ-45
Power Over Ethernet (PoE): PoE
Power
Power Consumption Operational: 12 watt
Technical Information
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Ruggedized Design: Outdoor
Physical Characteristics
Form Factor: External
Dimensions and Weight
Height: 4.9 inch
Width: 9.9 inch
Depth: 4.7 inch
Weight: 17.64 ounce
Included Items
Included Accessories: PoE injector, Power cord
Cables: Network cable
Certifications and Listing
Compliant Standards: IEEE 802.11ac Wave 2, IEEE 802.1p, IEEE 802.1Q
Compliant Standards: EMC, EN 301 893 V2.1.1, FCC, FCC-ID, IP55
Warranty
Service Activation: No
