Product Information

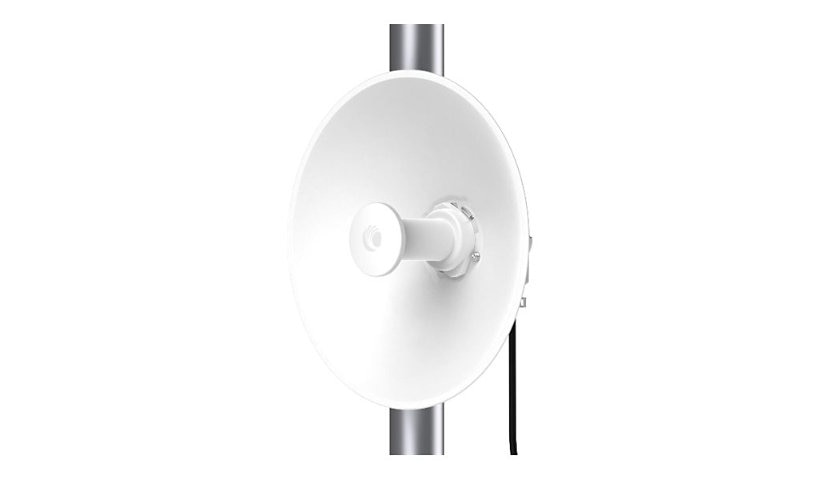

The Cambium Networks ePMP Force 4625 is a 6 GHz subscriber module radio with an integrated 25 dBi antenna, a bridge radio rather than a standalone antenna. It covers 5725 to 7125 MHz with 20 to 160 MHz channels, uses 802.11ax with OFDMA and 2x2 MIMO for PtP and PtMP links, and supports QoS, IGMP snooping and HTTPS, SSH and SNMP management. It draws about 28 W on 44 to 59 V DC, runs from -30 to 65 °C, and includes a US power cable and mounting kit. The quick specs mention a pack of 4, so please confirm the quantity.
Key Features
- 6 GHz SM radio
- Integrated 25 dBi antenna
- 5725 to 7125 MHz
- 802.11ax, 2x2 MIMO
- PtP and PtMP links
- Confirm pack quantity
Product Information
Brand: Cambium Networks
Manufacturer: Xirrus
Product Line: Cambium Networks ePMP
Model: Force 4625
Product Type: Wireless bridge
Packaged Quantity: 4
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network Standard: IPv4, IPv6, TCP, UDP
Remote Management: HTTP, HTTPS, ICMP, SNMP 2c, SSH
Routing Protocol: STP
Wireless LAN: 802.11a/b/g/n/ac/ax
Spread Spectrum Method: OFDMA
Network Device: Channel width: 20 / 40 / 80 / 160 MHz, Frequency range: 5725 - 7125 MHz
Antennas: 1
Antenna Form Factor: External integrated
Antenna Gain Level: 25 DBi
Features: 2x2 MIMO technology, Auto-negotiation, IGMP snooping, Point-to-Multipoint (PtMP) link mode, Point-to-Point (PtP) link mode, Quality of Service (QoS)
Connectivity
Interface Provided: 100/1000Base-T - SFP+
Power
Device Type: External power adapter
Required Voltage: DC 44 - 59 volt
Power Consumption Operational: 28 watt
Technical Information
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Physical Characteristics
Form Factor: Pole mountable
Dimensions and Weight
Height: 18.6 inch
Width: 18.6 inch
Depth: 11.7 inch
Weight: 6.08 lbs
Included Items
Included Accessories: Mounting kit
Cables: Power cable (US)
Certifications and Listing
Compliant Standards #2: IEEE 802.11ax, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3at
Compliant Standards: ETSI, FCC, FCC-ID, IP55
Compliant Standards: IEEE 802.11ax, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3at
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
Service Activation: No
