Product Information

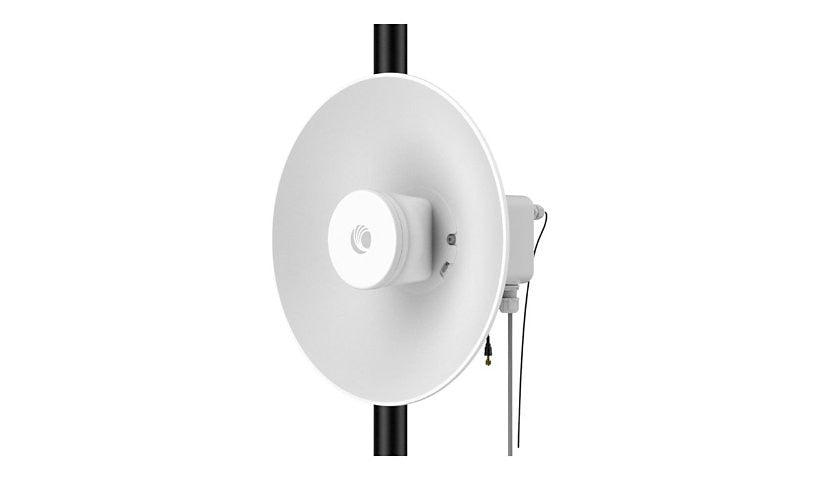

The Cambium N060045D401A is a high gain ultra wideband dish antenna for 5.150 to 7.125 GHz with 22 dBi gain, a narrow 7 x 7 degree beam, front to back ratio above 30 dB and 15 dB cross polar rejection. It has linear dual polarization with four antenna chains, VSWR under 2 and survives 200 km/h winds, suited to long range links and backhaul.
Key Features
- High gain dish, 22 dBi
- 5.15 to 7.125 GHz
- 7 x 7 degree beam
- Dual polarized, 4 chains
- Front to back over 30 dB
- 200 km/h wind rating
Product Information
Brand: Cambium Networks
Manufacturer: Xirrus
Product Line: Cambium Networks
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Color Category: White
Country: Rest of World
Network and Communication
Antenna Gain: 22 dBi
Frequency Range: 5.150 - 7.125 GHz
Signaling Type: Point-to-multipoint network, Wi-Fi
Features: 15 dB cross-polar, 200 km/hour wind survival, 4x4 antenna chains, Front-to-back ratio >30 dB, Horizontal polarisation, Linear dual polarization, Picture Transfer Protocol (PTP), Ultra-wide-band, Vertical polarisation
Technical Information
Antenna Form Type: Dish
Horizontal Beamwidth: 7°
Vertical Beamwidth: 7°
Voltage Standing Wave Ratio (VSWR): <2
Dimensions and Weight
Height: 18.2 inch
Width: 18.2 inch
Depth: 10.2 inch
Weight: 9.92 lbs
Certifications and Listing
Compliant Standards: IP66, IP67
Warranty
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
