Product Information

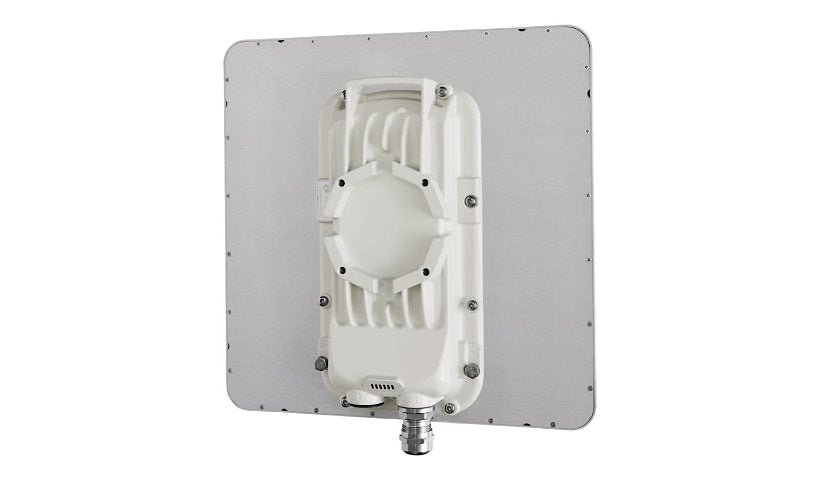

The Cambium PMP 450i (C050045C002D) is an outdoor 5 GHz radio with an integrated 23 dBi antenna, rather than a standalone antenna, rated for links up to 40 miles. It uses 2x2 MIMO, modulation up to 256 QAM, ARQ and full duplex, is GPS sync compatible and supports VLAN, QoS, DiffServ and IPv4/IPv6. It has one gigabit PoE port, surge protection, 128-bit AES (FIPS 197) and HTTP, HTTPS and SNMP management, drawing up to 55 W.
Key Features
- Radio, not an antenna
- 5 GHz, 23 dBi
- Up to 40 miles
- 2x2 MIMO, GPS sync
- Gigabit PoE port
- AES-128, SNMP
Product Information
Brand: Cambium Networks
Manufacturer: Xirrus
Product Line: Cambium Networks
Model: PMP 450i
Product Type: Wireless bridge
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Fast Ethernet, Gigabit Ethernet
Network Standard: FTP, ICMP/IP, TCP/IP, UDP/IP
Remote Management: HTTP, HTTPS, SNMP, SNMP 2c, SNMP 3, Telnet
Encryption: 128-bit AES, DES, FIPS 197
Line Coding Format: 16 QAM, 256 QAM, 64 QAM, QPSK
Spread Spectrum Method: OFDM
Antenna Form Factor: Internal
Antenna Gain Level: 23 DBi
Max Range Open Space: 40 miles
Frequency Band: 5 GHZ
Features: 2T2R MIMO technology, Auto Repeat reQuest (ARQ), Auto-negotiation, DiffServ support, Full duplex mode, GPS sync compatible, IPv4 support, IPv6 support, Quality of Service (QoS), Surge protection, VLAN support
Connectivity
Interface Provided: 1 x 1000Base-T (PoE) - RJ-45
Power Over Ethernet (PoE): PoE
Power
Power Consumption Operational: 55 watt
Technical Information
MTBF: 40 Year
Ruggedized Design: Outdoor
Physical Characteristics
Form Factor: External
Dimensions and Weight
Height: 12.2 inch
Width: 12.2 inch
Depth: 2.5 inch
Weight: 5.51 lbs
Certifications and Listing
Compliant Standards #2: IEEE 802.1ad, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3
Compliant Standards: EN 301 893 V1.8.1, EN 302 502 V1.2.1, EN 302 625 V1.1.1, IP66, IP67
Compliant Standards: IEEE 802.1ad, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3
Warranty
Service Activation: No
