Product Information

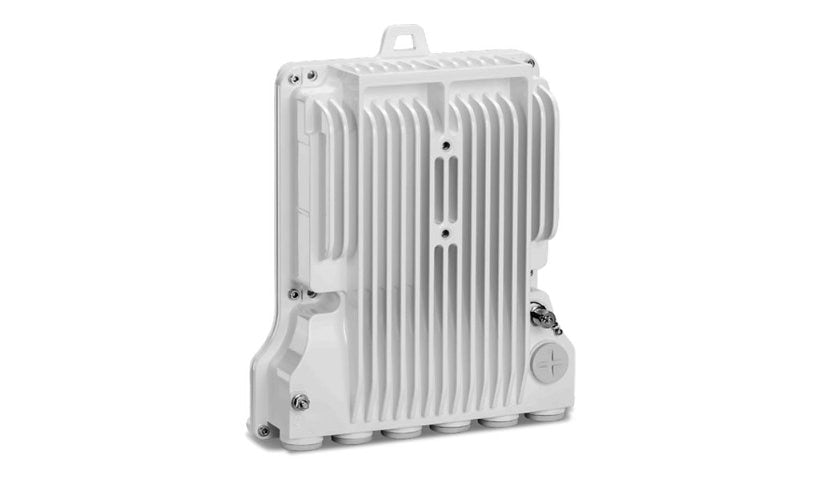

The Cambium PTP 850C (C180085B013A) is a rugged outdoor 18 GHz licensed microwave bridge, not an antenna. It supports 2x2 and 4x4 line of sight MIMO, XPIC, multi carrier ABC up to 2+0, modulation up to 4096 QAM, Advanced Frequency Reuse and Space Diversity, and IEEE 1588 PTP timing. Ports are a 1/2.5/5/10G RJ-45 with PoE, a 2.5G SFP, two 10G SFP+ and a 100 Mbps management port. It uses 256-bit AES, RADIUS and TACACS+, and is managed by HTTPS, SSH, SNMP v3 and NETCONF/YANG.
Key Features
- Microwave radio, not antenna
- 18 GHz band
- 2x2 and 4x4 LoS MIMO
- Up to 4096 QAM, XPIC
- 10G SFP+ and RJ-45 PoE
- AES-256, NETCONF/YANG
Product Information
Brand: Cambium Networks
Manufacturer: Xirrus
Product Line: Cambium Networks
Model: PTP 850C
Product Type: Wireless bridge
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, Gigabit Ethernet
Remote Management: HTTPS, NETCONF, SFTP, SNMP 3, SSH, YANG
Authentication Method: RADIUS, TACACS+
Encryption: 256-bit AES
Line Coding Format: 1024 QAM, 128 QAM, 16 QAM, 2048 QAM, 256 QAM, 32 QAM, 4096 QAM, 512 QAM, 64 QAM, 8 QAM, BPSK, QPSK
Network Device: Frequency range: 19259 - 19710 GHz
Frequency Band: 18 GHZ
Features: 2x2 LoS MIMO technology, 4x4 LoS MIMO technology, Advanced Frequency Reuse (AFR), Advanced Space Diversity (ASD), Class of Service (CoS), Cross Polarization Interference Cancellation (XPIC), DiffServ Code Point (DSCP) support, Enhanced multi-carrier ABC (up to 2+0), Multiple Spanning Tree Protocol (MSTP) support, P-bit marking/remarking, Precision Time Protocol (PTP), Quality of Service (QoS), RESTful APIs, VLAN support, Weighted Random Early Detection (WRED)
Connectivity
Interface Provided: 1 x 1/2.5/5/10GBase-T (PoE) - RJ-45, 1 x 2.5Gb Ethernet - SFP, 1 x management (100Base-TX) - RJ-45, 2 x 10Gb Ethernet - SFP+
Power Over Ethernet (PoE): PoE
Technical Information
Ruggedized Design: Outdoor
Physical Characteristics
Form Factor: External
Certifications and Listing
Compliant Standards #2: CSA C22.2 No. 60950-1, CSA C22.2 No. 60950-22, EN 301 489-1, EN 301 489.4, EN 60950-1, EN 60950-22, EN 61000-4-5, ETSI EN 300 019-1-1, ETSI EN 300 019-1-2, ETSI EN 302 217-2-2, FCC CFR47 Part 15 B, ICES-003 Class B, IEC 60950-1, IP67, UL 60950-1, UL 60950-22
Compliant Standards: IEEE 1588-2008, IEEE 802.1ad, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ac, ITU-T G.8032, ITU-T G.8261, ITU-T G.8262.1, ITU-T G.8264, ITU-T G.8271.1, ITU-T G.8273.2, ITU-T G.8273.3, ITU-T G.8275.1, ITU-T Y.1731
Compliant Standards: CSA C22.2 No. 60950-1, CSA C22.2 No. 60950-22, EN 301 489-1, EN 301 489.4, EN 60950-1, EN 60950-22, EN 61000-4-5, ETSI EN 300 019-1-1, ETSI EN 300 019-1-2, ETSI EN 302 217-2-2, FCC CFR47 Part 15 B, ICES-003 Class B, IEC 60950-1, IP67, UL 60950-1, UL 60950-22
