Product Information

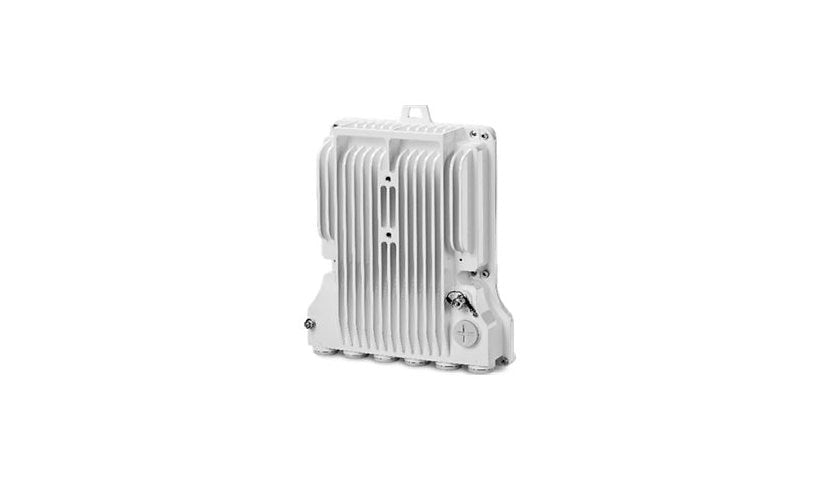

The Cambium PTP 850E (C800085B001A) is an all outdoor E-band radio for ultra high capacity backhaul, not an antenna. This high band unit transmits at 81 to 86 GHz and receives at 71 to 76 GHz, with 250 to 2000 MHz channels, BPSK to 512 QAM and up to 10 Gbps in 1+0. It has XPIC, ATPC, a frequency scanner, QoS and 4000 VLANs, and ports for 1/10/40G QSFP+, 10G SFP+, 1/2.5G SFP and gigabit management. It uses 256-bit AES, RADIUS and TACACS+, passive PoE and about 58 W.
Key Features
- E-band radio, not antenna
- High band, TX 81-86 GHz
- Up to 10 Gbps
- QSFP+, SFP+, SFP ports
- XPIC, ATPC, AES-256
- About 58 W
Product Information
Brand: Cambium Networks
Manufacturer: Xirrus
Product Line: Cambium Networks
Model: PTP 850E
Product Type: Wireless bridge
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 40 Gigabit Ethernet, Gigabit Ethernet
Remote Management: HTTPS, NETCONF, SFTP, SNMP 3, SSH, YANG
Authentication Method: RADIUS, TACACS+
Encryption: 256-bit AES
Line Coding Format: 128 QAM, 16 QAM, 256 QAM, 32 QAM, 4 QAM, 512 QAM, 64 QAM, 8 QAM, BPSK
Capacity: VLANs supported: 4000
Features: Adaptive Bandwidth Notification (ABN), Auto-uplink (auto MDI/MDI-X), Automatic Transmit Power Control (ATPC), Built-in frequency scanner, Class of Service (CoS), Cross Polarization Interference Cancellation (XPIC), P-bit marking/remarking, Quality of Service (QoS), RESTful APIs, VLAN support, Weighted Random Early Detection (WRED)
Connectivity
Interface Provided: 1 x 1/2.5Gb Ethernet - SFP, 1 x 1000Base-T (management) - RJ-45, 1 x 10Gb Ethernet - SFP+, 1/10/40Gb Ethernet - QSFP+
Power Over Ethernet (PoE): Passive PoE
Power
Power Consumption Operational: 58 watt
Redundant Power Supply: Optional
Technical Information
Min Operating Temperature: -27.4 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Ruggedized Design: Outdoor
Physical Characteristics
Form Factor: External
Dimensions and Weight
Height: 12.7 inch
Width: 10.6 inch
Depth: 3.4 inch
Weight: 12.13 lbs
Certifications and Listing
Compliant Standards #2: IEEE 1588-2008, IEEE 802.1ad, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ac, IEEE 802.3ae, ITU-T G.8032, ITU-T G.8261, ITU-T G.8262.1, ITU-T G.8264, ITU-T G.8271.1, ITU-T G.8273.2, ITU-T G.8273.3, ITU-T G.8275.1
Compliant Standards: CAN/CSA-C22.2 No. 60950-22, CSA C22.2 No. 60950-1, CSA C22.2 No. 62368-1, EN 301 489-1, EN 301 489.4, EN 302 217-2, EN 60950-1, EN 60950-22, EN 61000-4-5, EN 62368-1, ETSI EN 300 019-1-1, ETSI EN 300 019-1-2, FCC CFR47 Part 15 B Class A, ICES-003 Class A, IEC 60950-1, IEC 60950-22, IEC 61000-4-29, IEC 62368-1, IP67, UL 60950-1, UL 60950-22, UL 62368-1
Compliant Standards: IEEE 1588-2008, IEEE 802.1ad, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ac, IEEE 802.3ae, ITU-T G.8032, ITU-T G.8261, ITU-T G.8262.1, ITU-T G.8264, ITU-T G.8271.1, ITU-T G.8273.2, ITU-T G.8273.3, ITU-T G.8275.1
Warranty
Service Activation: No
