Product Information

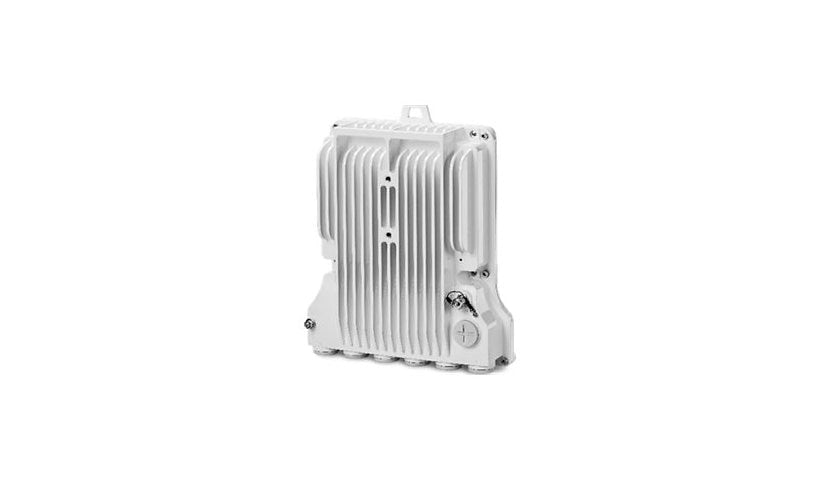

The Cambium PTP 850E (C800085B002A) is the low band pair of the all outdoor E-band backhaul radio, not an antenna. It transmits at 71 to 76 GHz and receives at 81 to 86 GHz, runs channel widths from 250 up to 2000 MHz and modulation from BPSK up to 512 QAM, and reaches 10 Gbps in 1+0. It offers XPIC, ATPC, WRED, CoS and REST APIs, with QSFP+, SFP+, SFP and management ports, AES-256 and about 58 W on passive PoE.
Key Features
- E-band radio, not antenna
- Low band, TX 71-76 GHz
- Up to 10 Gbps, 1+0
- 250 to 2000 MHz channels
- QSFP+, SFP+, SFP ports
- AES-256, REST APIs
Product Information
Brand: Cambium Networks
Manufacturer: Xirrus
Product Line: Cambium Networks
Model: PTP 850E
Product Type: Wireless bridge
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 40 Gigabit Ethernet, Gigabit Ethernet
Remote Management: HTTPS, NETCONF, SFTP, SNMP 3, SSH, YANG
Authentication Method: RADIUS, TACACS+
Encryption: 256-bit AES
Line Coding Format: 128 QAM, 16 QAM, 256 QAM, 32 QAM, 4 QAM, 512 QAM, 64 QAM, 8 QAM, BPSK
Capacity: VLANs supported: 4000
Features: Adaptive Bandwidth Notification (ABN), Auto-uplink (auto MDI/MDI-X), Automatic Transmit Power Control (ATPC), Built-in frequency scanner, Class of Service (CoS), Cross Polarization Interference Cancellation (XPIC), P-bit marking/remarking, Quality of Service (QoS), RESTful APIs, VLAN support, Weighted Random Early Detection (WRED)
Connectivity
Interface Provided: 1 x 1/2.5Gb Ethernet - SFP, 1 x 1000Base-T (management) - RJ-45, 1 x 10Gb Ethernet - SFP+, 1/10/40Gb Ethernet - QSFP+
Power Over Ethernet (PoE): Passive PoE
Power
Power Consumption Operational: 58 watt
Redundant Power Supply: Optional
Technical Information
Min Operating Temperature: -27.4 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Ruggedized Design: Outdoor
Physical Characteristics
Form Factor: External
Dimensions and Weight
Height: 12.7 inch
Width: 10.6 inch
Depth: 3.4 inch
Weight: 12.13 lbs
Certifications and Listing
Compliant Standards #2: IEEE 1588-2008, IEEE 802.1ad, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ac, IEEE 802.3ae, ITU-T G.8032, ITU-T G.8261, ITU-T G.8262.1, ITU-T G.8264, ITU-T G.8271.1, ITU-T G.8273.2, ITU-T G.8273.3, ITU-T G.8275.1
Compliant Standards: CAN/CSA-C22.2 No. 60950-22, CSA C22.2 No. 60950-1, CSA C22.2 No. 62368-1, EN 301 489-1, EN 301 489.4, EN 302 217-2, EN 60950-1, EN 60950-22, EN 61000-4-5, EN 62368-1, ETSI EN 300 019-1-1, ETSI EN 300 019-1-2, FCC CFR47 Part 15 B Class A, ICES-003 Class A, IEC 60950-1, IEC 60950-22, IEC 61000-4-29, IEC 62368-1, IP67, UL 60950-1, UL 60950-22, UL 62368-1
Compliant Standards: IEEE 1588-2008, IEEE 802.1ad, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ac, IEEE 802.3ae, ITU-T G.8032, ITU-T G.8261, ITU-T G.8262.1, ITU-T G.8264, ITU-T G.8271.1, ITU-T G.8273.2, ITU-T G.8273.3, ITU-T G.8275.1
Warranty
Service Activation: No
