Product Information

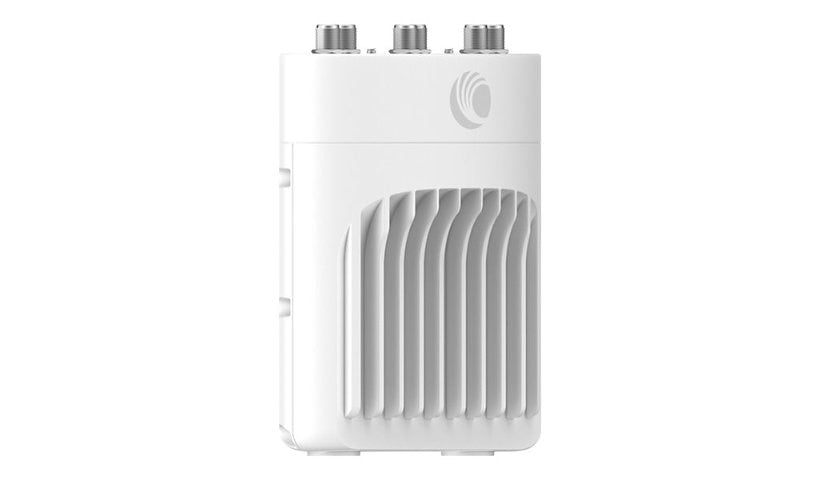

Cambium's XE3-4TN is a rugged outdoor Wi-Fi 6E access point covering 2.4, 5 and 6 GHz, with built in GNSS and BLE. It has a Gigabit PoE port, a 2.5G port and six antenna connections, supports up to 4096 VLANs, runs from -40 to 149 °F and is TAA compliant.
Key Features
- Outdoor Wi-Fi 6E tri-band
- Built-in GNSS, BLE
- 1G PoE + 2.5G RJ-45
- 6 antenna connections
- -40 to 149 °F
- TAA compliant
Product Information
Brand: Cambium Networks
Manufacturer: Xirrus
Product Line: Cambium Networks
Model: XE3-4TN
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network Standard: IPv4, IPv6, L2TPv2, NTP, PPPoE
Remote Management: DNS, HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, SSH, Syslog, TCP/IP, Telnet
Authentication Method: RADIUS
Encryption: AES, CCMP, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, Opportunistic Wireless Encryption (OWE), OSEN, PEAP, PEAPv1, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-SAE
Line Coding Format: 1024 QAM, 16 QAM, 256 QAM, 4096 QAM, 64 QAM, BPSK, QPSK
Capacity: VLANs supported: 4096
Wireless LAN: 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Spread Spectrum Method: DSSS, OFDM, OFDMA
Network Device: Aggregate data rate: 6.6 Gbps, Channel width: 20 / 40 / 80 / 160 MHz, Maximum data rate (2.4 GHz): 573.5 Mbps, Maximum data rate (5 GHz): 1.201 Gbps, Maximum data rate (6 GHz): 4.804 Gbps
Features: 2x2 MIMO technology, 4x4 MIMO technology, Authentication, Authorization and Accounting (AAA), Band steering, Bluetooth Low Energy (BLE), Cloud managed, DHCP server, DNS proxy, Firewall protection, L2GRE tunneling, MAC address authentication, Maximum Ratio Combining (MRC), Mesh networking, MU-MIMO technology, NAT support, Opportunistic key caching (OKC), Packet aggregation A-MPDU, Packet aggregation A-MSDU, Security slot (Kensington security lock compatible), SNMP traps, Space Time Blocking Code (STBC), Unscheduled Automatic Power Save Delivery (U-APSD), Very High Throughput (VHT) support, VLAN pooling, Wi-Fi Multimedia (WMM) support
Connectivity
Interface Provided: 1 x 10/100/1000Base-T (PoE) - RJ-45, 1 x 100M/1G/2.5 Gigabit Ethernet - RJ-45, 1 x GPS/GNSS, 6 x antenna
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 95% RH (non-condensing)
Ruggedized Design: Outdoor
Physical Characteristics
Form Factor: Wall / panel mountable
Status Indicators: Status
Built-in Devices: GNSS receiver
Dimensions and Weight
Height: 8.7 inch
Width: 7.9 inch
Depth: 3.4 inch
Weight: 6.44 lbs
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11j, IEEE 802.11k, IEEE 802.11n, IEEE 802.11q, IEEE 802.11r, IEEE 802.11s, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w, IEEE 802.1p, IEEE 802.1x, IEEE 802.3at
Compliant Standards: EN 303 413, EN 50121, EN 61373, ETSI, FCC, IC, IEC 60068-2-5, IEC 60529, IEC 60950, IEC 62368, IP67, PP2.0
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
