Product Information

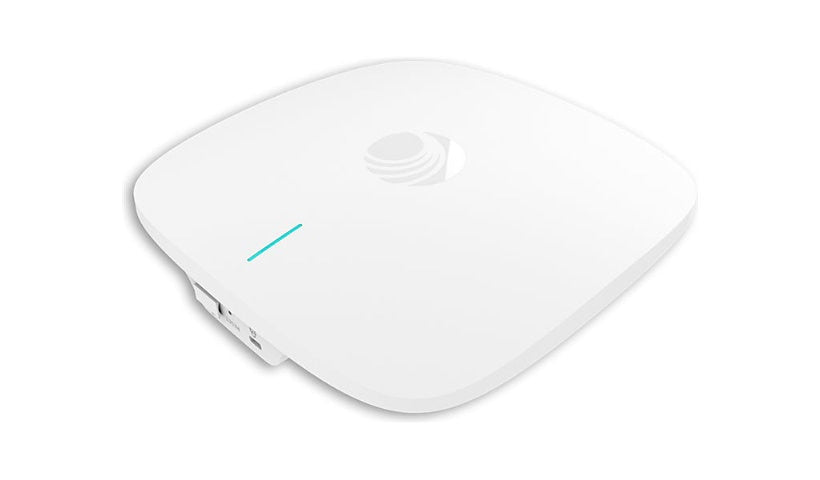

The Cambium X7-35X is an indoor tri-radio Wi-Fi 7 access point with 2x2 MU-MIMO, a 9.2 Gbps aggregate rate and Low Power Indoor 6 GHz mode, supporting up to 768 clients. It has a 2.5G PoE uplink, a USB console port and an IoT radio for BLE, Zigbee, Thread and Matter, and is managed by cnMaestro.
Key Features
- Wi-Fi 7 tri-band, 2x2
- 9.2 Gbps aggregate
- Up to 768 clients
- 2.5G RJ-45, PoE
- BLE / Zigbee / Thread / Matter
- cnMaestro managed
Product Information
Brand: Cambium Networks
Manufacturer: Xirrus
Product Line: Cambium Networks
Model: X7-35X
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n
Network Standard: DHCP, DNS, FTP, IPv4, IPv6, L2oGRE, L2TPv2, PPPoE
Remote Management: SNMP 2, SNMP 3
Authentication Method: MACAuth, RADIUS
Encryption: AES, CNSA, EAP-AKA, EAP-TLS, EAP-TTLS, Opportunistic Wireless Encryption (OWE), PEAP, PMF, WPA, WPA2, WPA2-PSK, WPA3-PSK, WPA3-SAE
Capacity: Clients per access point: 768, SSIDs per device: 48, SSIDs per radio: 16, Wireless clients per Wi-Fi radio: 256
Wireless LAN: 802.11a/b/g/n/ac/ax/be
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Network Device: Maximum data rate (2.4 GHz): 574 Mbps, Maximum data rate (5 GHz): 2882 Mbps, Maximum data rate (6 GHz): 5765 Mbps
Antenna Form Factor: Internal
Directivity: Omni-directional
Features: 2x2 MU-MIMO technology, 2x2 SU-MIMO technology, 2x2:2 MU-MIMO technology, 802.1x authentication, Band steering, cnMaestro support, Colored LED status, DHCP client, DHCP server, DNS proxy, LLDP support, Load balancing, Maximum Ratio Combining (MRC), Multi-Link Operation (MLO), NAT support, Opportunistic key caching (OKC), Security slot (Kensington security lock compatible), SNMP traps, Target Wait Time (TWT), Transmit Beamforming, Unscheduled Automatic Power Save Delivery (U-APSD), VLAN pooling, Wi-Fi Multimedia (WMM) support, Wireless Mesh support, WLAN scheduling, WWAN support
Connectivity
Interface Provided: 1 x 2.5 GBase-T (PoE) - RJ-45, 1 x USB 2.0 (console) - Type A
Power Over Ethernet (PoE): PoE
Power
Power Consumption Operational: 10.6 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 95% RH (non-condensing)
MTBF: 829,316 Year
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: Wall / ceiling mountable
Status Indicators: Status
Dimensions and Weight
Height: 1.8 inch
Width: 8.3 inch
Depth: 8.3 inch
Weight: 32.98 ounce
Certifications and Listing
Compliant Standards: EMC, EN 60601-1 Medical Part 1, EN 60601-1-2, EN 60950-1, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, EN 62311, FCC IC, IEEE 802.11d, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11r, IEEE 802.11u, IEEE 802.11w, REACH, RoHS, Safety 62368-1, UL 2043, WEEE
Compliant Standards: IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.11r, IEEE 802.3at
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
