Product Information

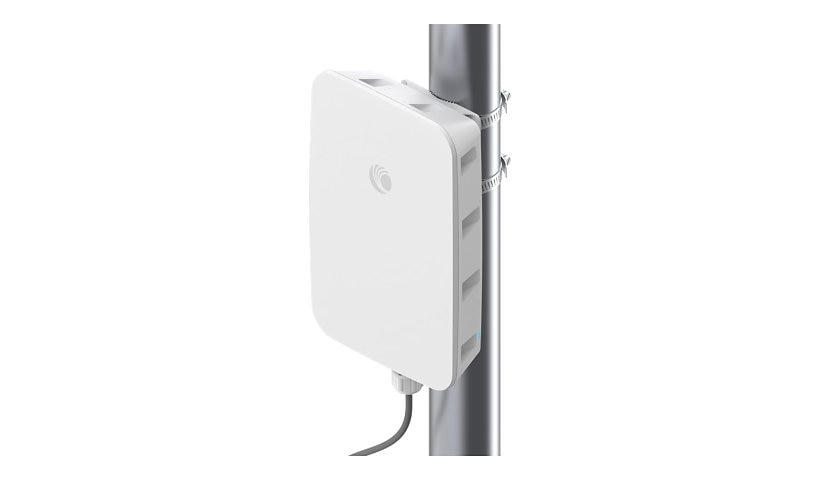

Cambium's XV2-23T is an outdoor dual radio Wi-Fi 6 access point with long range internal antennas for hotels, campuses, cities and transport sites. It is IP67 rated, PoE powered, rated -40 to 149 °F and managed through cnMaestro. The title mentions 2.5 GbE but the spec sheet lists a 10/100/1000 port, so please confirm.
Key Features
- Outdoor Wi-Fi 6, 2x2 dual radio
- Long range internal antennas
- IP67, -40 to 149 °F
- PoE powered, about 20 W
- cnMaestro cloud managed
- Pole mount
Product Information
Brand: Cambium Networks
Manufacturer: Xirrus
Product Line: Cambium Networks
Model: XV2-23T
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network Standard: HTTP, HTTPs, IPv4, IPv6, L2GRE, L2TPv2, PPPoE
Remote Management: DNS, NTP, SNMP 1, SNMP 2c, SNMP 3, Syslog, TCP/IP
Routing Protocol: GRE, IGMP, IGMPv2
Authentication Method: MACAuth, RADIUS
Encryption: AES, CCMP, EAP-AKA, EAP-FAST, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, ePSK, MSCHAPv2, OSEN, PEAP, PEAPv1, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-SAE
Line Coding Format: 1024 QAM, 16 QAM, 256 QAM, 4096 QAM, 64 QAM, BPSK, CCK, DSSS, QPSK
Capacity: Concurrent clients: 256, SSIDs total: 16
Wireless LAN: 802.11a/b/g/n/ac Wave 2/ax
Network Band: 2.4 GHz, 5 GHz
Spread Spectrum Method: DSSS, OFDM, OFDMA
Network Device: Channel width: 20 / 40 / 80 / 160 MHz, Maximum data rate (2.4 GHz): 573.5 Mbps, Maximum data rate (5 GHz): 2402 Mbps
Antenna Form Factor: Internal
Features: 2x2 MU-MIMO technology, Airtime Fairness, Authentication, Authorization and Accounting (AAA), Band steering, cnMaestro support, DHCP relay, DHCP server, DNS proxy, Firewall protection, HotSpot 2.0, LED status indicators, LLDP support, Load balancing, Low Density Parity Check (LDPC), MAC address authentication, Maximum Ratio Combining (MRC), Mesh networking, Microsoft Azure support, MIMO Power Save, NAT support, Opportunistic key caching (OKC), Pre-Shared Key (PSK), Security slot (Kensington security lock compatible), SNMP traps, Unscheduled Automatic Power Save Delivery (U-APSD), VLAN pooling, Wi-Fi Multimedia (WMM) support, WLAN scheduling
Connectivity
Interface Provided: 1 x 10/100/1000Base-T (PoE) - RJ-45
Power Over Ethernet (PoE): PoE
Power
Power Consumption Operational: 20 watt
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 0 - 95% RH (non-condensing)
MTBF: 5,077,102 hour(s)
Ruggedized Design: Outdoor
Physical Characteristics
Form Factor: Pole mountable
Dimensions and Weight
Height: 11.8 inch
Width: 7.9 inch
Depth: 3.3 inch
Weight: 2.69 lbs
Certifications and Listing
Compliant Standards: EN 50121, EN 61373, FCC, IC, IEC 60950, IEC 62368, IP67, OWE, PP2.0
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w, IEEE 802.3af, Wi-Fi CERTIFIED 6
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
Service Activation: No
