Product Information

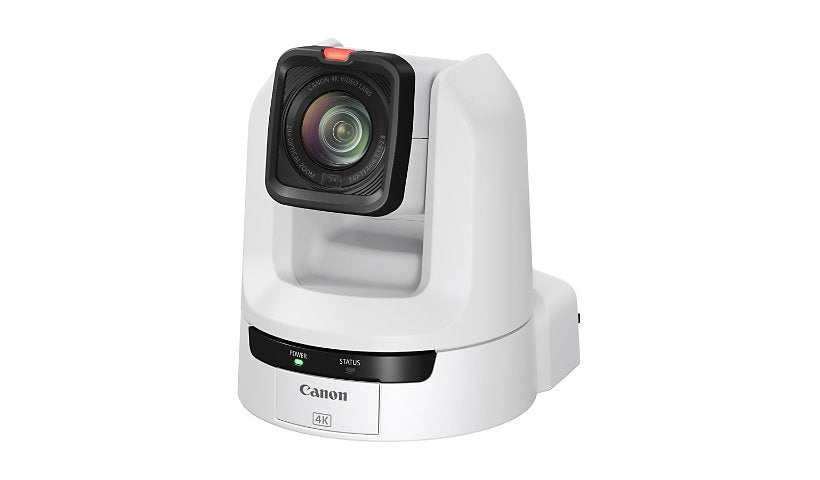

The Canon CR-N100 (6527C022) is a 4K PTZ camera with a 1/2.3 inch CMOS sensor, 20x optical zoom with optical image stabilization and DIGIC DV 6 processing, recording 4K at 29.97 fps or 1080p at 59.94 fps. It offers HDMI, USB-C and network output, face detection with AF/AE tracking, 100 presets and RS-422 control, on 24 V DC or PoE+. A remote, battery, mount plate and security wire are included. It is a conference camera, not a security camera.
Key Features
- 4K at 29.97 fps
- 20x optical zoom
- HDMI, USB-C, IP
- Face tracking
- 100 presets, remote
- 24 V DC or PoE+
Product Information
Brand: Canon
Manufacturer: Canon
Product Line: Canon CR
Model: N100
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Features: 100 preset positions, AF/AE tracking, Auto white balance, Contrast detection AF, DIGIC DV 6 Image Processor, Face Detection, Infrared remote control, Multicast Streaming, Optical image stabilizer, Over Sampled HD Processing, Tally light, Variable Bit Rate (VBR), Webcam function
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: DHCPv6, DNS, IPv4, IPv6, MDNS, NDI HX, RTMP, RTMPS, RTP, RTSP, SRT
Ports: HDMI output - HDMI Type A, LAN - RJ-45, Microphone - 3.5 mm stereo jack, Serial RS-422 - RJ-45, USB 3.0 - Type C
Power
Low Voltage Power: DC 24 V / PoE Plus
Power Device Type: Power adapter / PoE
Power Consumption Operational: 13.9 watt
Memory and Processor
Memory Cards Supported: microSD Card
Technical Information
Angular Field of View (H, Max, Degree): 65.6
Angular Field of View (V, Max, Degree): 39.8
Focus Modes: Automatic, Manual
Video Signals: HDMI, USB
Optical Zoom: 20
Video Capture: 1920 x 1080 @ 59.94 fps, 3840 x 2160 @ 29.97 fps
Recording Formats: JPEG
Digital Zoom: 20
Max Panning Speed (degree/sec): 300
Max Tilting Speed (degree/sec): 180
Tilt: -30 to +100
Panning Range (degree): -170 to +170
Angular Field of View (H, Min, Degree): 3.4
Angular Field of View (V, Min, Degree): 1.9
Camera Iris: Auto and manual iris
Min Focus Distance: 0.4 inch
Minimum Illumination: 1.5 lux - shutter 1/30 sec
Total Pixels: 21,140,000 pixels
Video Modes: 1080/23.98p, 1080/25p, 1080/30p, 1080/50i, 1080/50p, 1080/59.94i, 1080/59.94p, 2160/23.98p, 2160/25p, 2160/29.97p, 720/50p, 720/59.94p
Image Sensor Size: 1/2.3"
Image Sensor Type: CMOS
Lens Aperture: F/1.8-2.8
Min Focal Length: 73.4 millimetre
Sensor Size (metric): 11 mm (1/2.3")
Digital Video Capture Resolution: 1280 x 720, 1920 x 1080, 3840 x 2160, 640 x 360
Max Frame Rate: 59.94 frames per second
Shutter Speed (Max): 1/2000 second (time unit)
Shutter Speed (Min): 1/6 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC
Touchscreen: No
Max Video Resolution: 3840 x 2160
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Camera Mechanical Design: Pan / tilt / zoom
Dimensions and Weight
Height: 7 inch
Width: 6.1 inch
Depth: 6.5 inch
Weight: 4.85 lbs
Included Items
Included Accessories: Battery, Mount plate, Remote control, Screw, Security wire
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
