Product Information

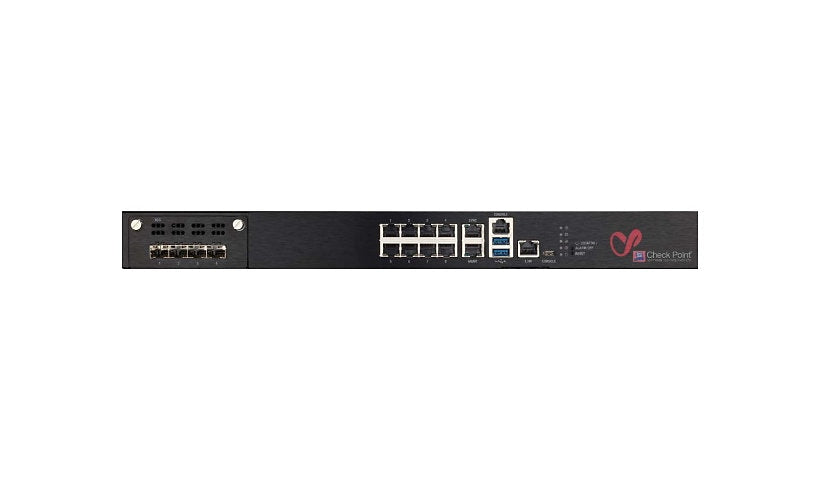

This Check Point Quantum 6200 Plus comes with a 1 year SandBlast (SNBT) subscription. It is a 1U firewall rated at 17.55 Gbps firewall (1518-byte UDP), 9 Gbps firewall, 4.65 Gbps IPS, 3.72 Gbps NGFW, 1.8 Gbps threat prevention and 2.57 Gbps VPN, with up to 8 million concurrent connections and 67,000 connections per second. It has eight Gigabit RJ-45 ports, four SFP ports, management, sync and Lights-Out ports, RJ-45 and USB-C consoles, 16 GB of RAM, a 240 GB drive and two power supplies.
Key Features
- 1 yr SandBlast subscription
- 17.55 Gbps firewall (1518-byte)
- 3.72 Gbps NGFW
- 8M concurrent connections
- 8 x 1G RJ-45 + 4 x SFP
- 1U, dual power supplies
Product Information
Brand: Check Point
Manufacturer: Check Point Software
Product Line: Check Point Quantum 6200
Model: Plus
Product Type: Security appliance
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management: LDAP, RADIUS
Routing Protocol: BGP, IGMPv2, IGMPv3, OSPFv2, OSPFv3, PIM-DM, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP, Static IP routing, VRRPv3
Authentication Method: LDAP, RADIUS
Capacity: Concurrent connections: 8000000
Network Device: Connection rate: 67000 connections per second, Firewall throughput (1518-byte UDP): 17.55 Gbps, Firewall throughput: 9 Gbps, IPS throughput: 4.65 Gbps, NGFW throughput: 3.72 Gbps, Threat prevention throughput: 1.8 Gbps, VPN throughput (128-bit AES): 2.57 Gbps
Features: Anti-bot protection, Anti-virus protection, ClusterXL, CoreXL, Data Loss Prevention (DLP), Firewall protection, Intrusion Prevention System (IPS), IPv6 support, LDAP support, Lights Out Management (LOM), RADIUS support, SecureXL, URL filtering, Virtual Route Redundancy Protocol (VRRP) support, VLAN support, VPN support
Connectivity
Interface Provided: 1 x 1000Base-T (management) - RJ-45, 1 x 1000Base-T (sync) - RJ-45, 1 x console - RJ-45, 1 x console - USB-C, 1 x management (Lights-Out) - RJ-45, 2 x USB 3.0 - Type A, 4 x Ethernet 1000 - SFP (mini-GBIC), 8 x 1000Base-T - RJ-45
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Consumption Operational: 122 watt
Power Provided: 150 watt
Power Supplies Installed: 2
Memory and Processor
Processors Installed: 1
RAM Installed: 16 GB
Hard Drive Capacity: 240 GB
Port Expansion Hard Drive Type: SSD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 0 - 95%
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Installed Quantity: 1
Dimensions and Weight
Height: 1.7 inch
Width: 17.2 inch
Depth: 20 inch
Weight: 16.53 lbs
Included Items
Included Accessories: 4 SX SFP transceivers
Certifications and Listing
Compliant Standards: IEEE 802.3ad (LACP)
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
