Product Information

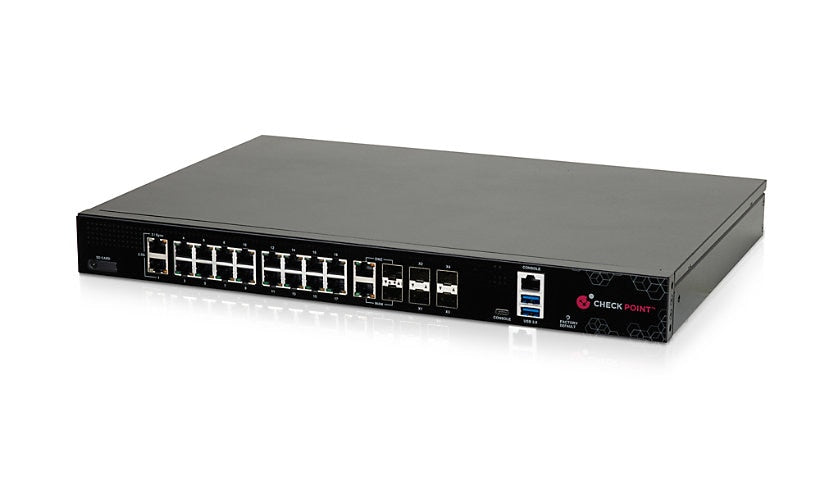

This Check Point Quantum Spark 2000 comes with a 1 year SandBlast (SNBT) subscription. It is a 1U firewall for medium size businesses, rated at 40 Gbps firewall (1518-byte UDP), 20 Gbps firewall, 11 Gbps IPS, 10 Gbps NGFW, 5 Gbps threat prevention and 6 Gbps VPN, with up to 4.2 million concurrent connections, 100,000 connections per second and 1,000 mobile access users. It has sixteen Gigabit RJ-45 ports, two 2.5G ports, four 10G RJ-45/SFP+ ports, WAN and DMZ ports, 16 GB of RAM, a 512 GB drive and dual redundant power supplies.
Key Features
- 1 yr SandBlast subscription
- 20 Gbps firewall
- 10 Gbps NGFW
- 4.2M concurrent connections
- 16 x 1G + 2 x 2.5G + 4 x 10G
- 1U, dual redundant PSU
Product Information
Brand: Check Point
Manufacturer: Check Point Software
Product Line: Check Point Quantum Spark 2000
Product Type: Security appliance
Packaged Quantity: 1
Color Category: Black
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Routing Protocol: BGP-4, BGP-4++, ClusterXL, IGMP, OSPFv2, PIM-DM, PIM-SM, PIM-SSM, RIP
Capacity: Concurrent connections: 4200000, Mobile access user licenses: 1000
Network Device: Connection rate: 100000 connections per second, Firewall throughput (1518-byte UDP): 40 Gbps, Firewall throughput: 20 Gbps, IPS throughput: 11 Gbps, NGFW throughput: 10 Gbps, Threat prevention throughput: 5 Gbps, VPN throughput (128-bit AES): 6 Gbps
Features: Anti-bot protection, Anti-spam protection, Anti-virus protection, Application filtering, Firewall protection, IPSec server, IPv4 and IPv6 dual stack, Quality of Service (QoS), Sandboxing, URL filtering, User awareness, VPN support
Bundled Services: 1 year SandBlast (SNBT) Security Subscription Package
Connectivity
Interface Provided: 1 x 10/100/1000Base-T - RJ-45 (DMZ), 1 x 10/100/1000Base-T - RJ-45 (WAN), 1 x console - RJ-45, 1 x console - USB-C, 16 x 10/100/1000Base-T - RJ-45, 2 x 2.5Gb Ethernet - RJ-45, 2 x USB 3.0 - Type A, 4 x 10Gb Ethernet - RJ-45/SFP+
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 93.6 watt
Power Provided: 150 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply: Yes
Memory and Processor
RAM Installed: 16 GB
Hard Drive Capacity: 512 GB
Port Expansion Hard Drive Type: SSD
Flash Memory Cards Supported: microSD
Optical Drive Type: None
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Built-in Devices: 4 x fans, Power on/off switch
Installed Quantity: 1
Dimensions and Weight
Height: 1.7 inch
Width: 17 inch
Depth: 11.8 inch
Weight: 14.9 lbs
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
