Product Information

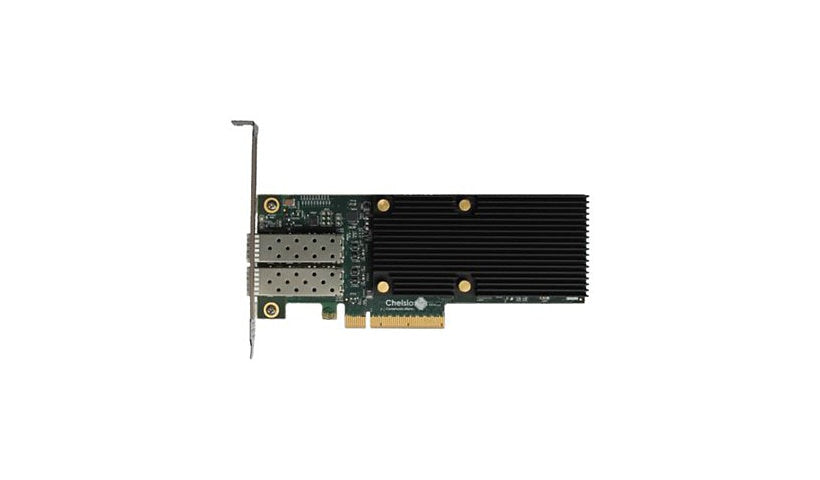

The Chelsio T520-CR is a fifth generation (T5) 10 Gigabit Ethernet Unified Wire adapter on a PCIe 3.0 x8 interface, built for cloud, HPC, virtualization and storage. Its onboard hardware takes over TCP/IP, iSCSI and FCoE work as well as iWARP RDMA to free host CPU cycles, and supports QoS, traffic control, VLANs, load balancing and jumbo frames. The spec lists one 10GBase-SR LC multimode port while the description calls it a dual port adapter, so please confirm the port count before ordering.
Key Features
- 10GbE Unified Wire adapter
- Chelsio T5 technology
- PCIe 3.0 x8
- iWARP RDMA offload
- iSCSI and FCoE offload
- 10GBase-SR LC port
Product Information
Brand: Chelsio
Manufacturer: Chelsio
Product Line: Chelsio
Model: T520-CR
Product Type: Network adapter
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE)
Network Standard: iSCSI, iWARP, TCP/IP, UDP/IP
Cable Type: Ethernet 10GBase-SR
Data Transfer Rate: 10 GBps
Features: Congestion control, Edge Virtual Bridging (EVB), Firewall protection, Flow control, IPv4 support, IPv6 support, Jumbo Frames support, Load balancing, NAT support, Quality of Service (QoS), RDMA support, TCP proxy, Traffic Control, VLAN support
Connectivity
PCI Specification Revision: PCI 3.0
Port Quantity: 1
Interface Provided: 1 - LC multi-mode
Network & Adapter Ports: 10GBase-SR
Host Interface: PCI Express 3.0 x8
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: Plug-In Card
Dimensions and Weight
Depth: 6.6 inch
Certifications and Listing
Compliant Standards #2: RoHS
Compliant Standards: IEEE 802.1Q, IEEE 802.1Qbg, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3az, IEEE 802.3p, IEEE 802.3x, IEEE 802.3z
Compliant Standards: RoHS
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
