Product Information

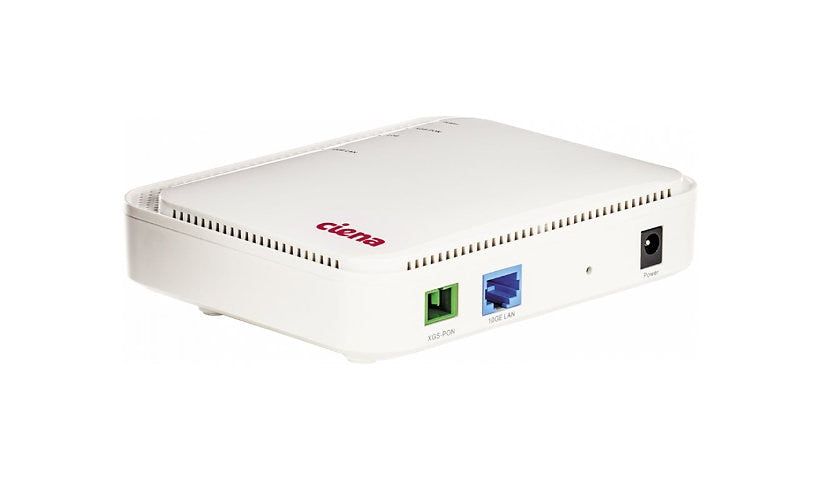

The Ciena 3802 (170-3802-900) is an XGS-PON optical network unit with an SC/APC PON port and one 10GBase-T RJ-45 port that supports 1G, 2.5G, 5G and 10G. It runs Ciena SAOS with QoS, VLAN tagging and 9216 byte jumbo frames and is listed for Ciena 5164, 5166 and 5171. This is an ONU, not a switch.
Key Features
- 1 x XGS-PON port, SC/APC
- 1 x 10GBase-T RJ-45 (1/2.5/5/10G)
- Ciena SAOS, QoS, VLAN tagging
- Jumbo frames up to 9216 bytes
- Power adapter included
Product Information
Brand: Ciena
Manufacturer: Ciena
Product Line: Ciena
Model: 3802
Product Type: Optical network unit
Packaged Quantity: 1
Color Category: White
Country: North America
Network and Communication
Data Link Protocols: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Gigabit Ethernet
Features: Ciena's Service-Aware Operating System (SAOS), Jumbo Frames support (up to 9216 bytes), Quality of Service (QoS), Traffic shaping, VLAN Tagging
Connectivity
Interface Provided: 1 x 10GBase-T - RJ-45, 1 x XGS-PON - SC/APC
Power
Required Voltage: AC 100-240 volt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 95% (non-condensing)
Physical Characteristics
Form Factor: External
Dimensions and Weight
Height: 1.2 inch
Width: 5.7 inch
Depth: 4.3 inch
Weight: 7.76 ounce
Included Items
Included Accessories: Power adapter
Certifications and Listing
Compliant Standards: IEEE 1588v2, IEEE 802.1ad, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3, IEEE 802.3an, IEEE 802.3z, ITU-T G.8262, ITU-T G.9807.1, ITU-T Y.1731
ENERGY STAR Certified: No
